Slide Gate Opener Accessories
Keypad (wireless)
Touch sensitive buttons
6V DC supply (4x AA Batteries NOT INCLUDED)
LED Indicators + Backlight

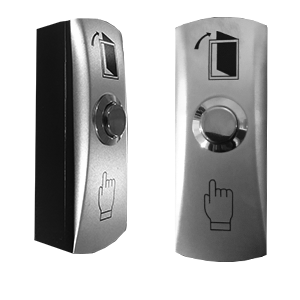

Keyed Push Button
Wires into control board / provides entry or
exit to property and is lockable with a key
(Speaker cable not supplied)
exit to property and is lockable with a key
(Speaker cable not supplied)
Wireless Intercom
4xAA batteries (not included)
Speaker unit
Hand set plugs into 240 power point
Speaker unit
Hand set plugs into 240 power point
Extra Remotes
AC LW550 & DC500
DACE Sprint or Condo
Long range
DACE Sprint or Condo
Long range
Long Range Receiver Kit
Need distance on your gate opener?
Maximum distance 400mtrs Includes
1 x receiver & 3 x remotes
Maximum distance 400mtrs Includes
1 x receiver & 3 x remotes
Long Range Receiver
Need distance on your gate opener?
Maximum distance 400mtrs
Includes 1 x receiver, 2m cable
Maximum distance 400mtrs
Includes 1 x receiver, 2m cable
Eyebeams
Wireless (Batteries supplied)
Wired (cable not supplied)
Extra safety feature
Wired (cable not supplied)
Extra safety feature

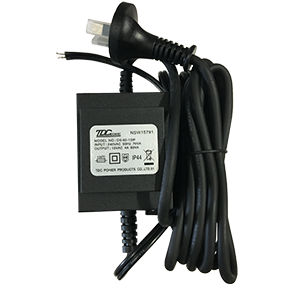

Transformers
(cable not supplied)
Standard (50mtr) Transformer
Large (100mtrs) Transformer
Standard (50mtr) Transformer
Large (100mtrs) Transformer
Gate Stop
Stop is placed in the open position
Sits at 120mm high
Sits at 120mm high
Guide & Rollers
Suits frames up to 75mm
Roller size 60x40mm
other sizes available
120mm ($10ea), 150mm ($13ea) & 200mm ($15ea)
Roller size 60x40mm
other sizes available
120mm ($10ea), 150mm ($13ea) & 200mm ($15ea)
Slide Guide & Block
Suited for gate on a fall/gradient or
have timber pickets
Attaches and slides along an aluminium channel
have timber pickets
Attaches and slides along an aluminium channel
Gate Catcher
Suits frames up to 50mm wide
Must go at closed end of the gate
to prevent the gate being lifted off the track
Must go at closed end of the gate
to prevent the gate being lifted off the track
Adjustable Catcher
Attaches to side post or pillar
Adjustable for gates with a frame
larger than 50mm
Adjustable for gates with a frame
larger than 50mm

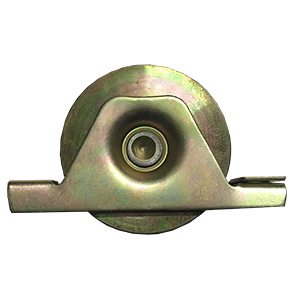

Wheels
Size: 16mm
Weight: 250kgs per wheel
Zinc Finish
Weight: 250kgs per wheel
Zinc Finish
Aluminium Track
Available and sold in 2mtr or 6mtr lengths
U - Shaped 16mm track
Bolts direct to concrete plinth
U - Shaped 16mm track
Bolts direct to concrete plinth
Nylon Racking
Nylon Racking has a solid steel Core
fused inside to add strength
Sold in 1mtr Lengths
fused inside to add strength
Sold in 1mtr Lengths
Low voltage Cable
Used for transformer or
solar panel
Speaker Cable
Used for push button and
keyed push button
Telecom Cable
Used for Keypad, photocells and
long range receiver
Slide Kit $200
8mtrs 16mm aluminium track, 1 x gate catcher, 1 x gate stop, 1 x guide & rollers, 2 x 16mm wheels
The slide kit will get your gate sliding, opening and closing manually!
Our aluminium track is strong and robust, suited for cars and trucks driving across and must be attached to concrete only.
- Track is 16mm - available in 2mtr and 6mtr lengths
- Wheels are 16mm x 100mm diameter, zinc finished and rated approximately for 250kgs per wheel
- Guide and rollers are powder coated black finish, rollers are 40mm x 60mm deep
- Gate catcher suits 50mm frames
This kit is suited to a 4mtr gate (8mtrs track) if your gate is longer than this please make sure to add the extra track required $15/mtr.
If your gate has timber pickets or palings or on a significant slope due to the land, you may need to consider using a slide guide block and not the guide and rollers which is standard in our kit.
