Wireless Vehicle Exit Sensor for Gate Automation – eLoop

The smarter way to detect vehicles exiting your driveway.

Upgrade Your Driveway with the eLoop Wireless Exit Sensor

The eLoop Vehicle Motion Sensor is an innovative, wireless detection system designed to automate the exit process for residential gates and driveways. Unlike traditional wired loops that require trenching or core drilling, the eLoop sits above the surface—offering a hassle-free installation and zero ground damage.

Whether you're automating a gate at a home, rural property, or small business, the eLoop offers accurate detection, reliability in all conditions, and fast response times.

eLoop wireless vehicle sensor installed on driveway

E-loop Mini Wireless Vehicle Detector - Commercial 'Presence Mode'

How It Works

Detects motion from cars, utes, and light trucks
Works with most gate automation systems
Wireless communication with receiver unit
No need to cut concrete or asphalt

Perfect for Exiting your Property

Driveways with automatic swing or sliding gates
Homes without underground cabling
Acreage properties and rural locations
Upgrades from older wired systems

Easy Installation

Install the sensor above ground using included mounting hardware
no need for saw cutting or concrete work. Ideal for retrofit upgrades and new builds alike.

eLoop Mini wireless vehicle detector and e-Trans-50 receiver for gate automation systems

Brochure

Data Sheet

Instructions

The e-Loop Commercial is engineered for tough environments, delivering exceptional durability and dependable performance where continuous operation is essential. Built with a rugged, weather-resistant design and a high-visibility finish for added safety, it ensures accurate vehicle detection in all conditions. Ideal for warehouses, truck yards, and agricultural sites, the e-Loop Commercial helps reduce downtime, boost efficiency, and keep operations running without interruption.

Key Features

Wireless Design – No trenching, no wires, no mess
Reliable Vehicle Detection – Consistent performance rain or shine
Battery Powered – Up to 4 Year battery life (Presence Mode)
Fast Installation – Surface-mounted with minimal tools
Tamper-Proof Casing – Durable and weather-resistant
Customisable Settings – Adjust sensitivity and detection range
Made of high-impact plastic – 10-tonne static load capacity
Range – 50 metres

Microtech Radar® sensors are built to reliably detect stationary vehicles positioned above the e-Loop using advanced radio communication technology. When a vehicle is detected, the sensor immediately signals the e-Loop system via relay to confirm presence. If a drop in the magnetic field is sensed, the radar quickly scans the area to verify whether a vehicle is still within range. If no vehicle is found, the relay automatically deactivates.

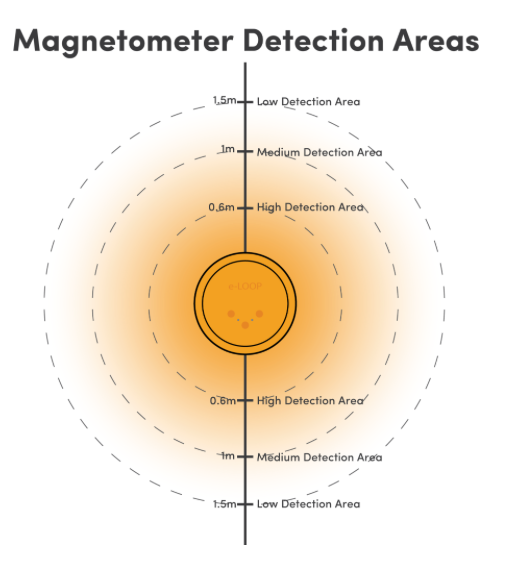

eLoop vehicle sensor detection area diagram showing high, medium, and low detection zones

Why does BMGi only offer the Presence mode e-loop and what is the differnce between Presence and Exit?
'Exit mode' will trigger the gate to open and whether the vehicle has moved or remains stationary, the gate will close once auto close activates.
'Presence mode' will trigger the gate to open and auto close will not activate until the vehicle has moved away from the e-loop.
BMGi believes 'Presence mode' is the safer option for any application where there is a possibility of a gate closing onto a vehicle.

FAQs About the eLoop Exit Sensor

How big is it?: Installation measuring only 28mm in height by 220mm in diameter.
Will the eLoop work with my existing gate motor?: Most likely, yes. The eLoop is designed to be compatible with a wide range of gate control boards.
Is it suitable for all weather conditions?: Yes, the eLoop is fully weather-sealed and built to withstand Australia’s harsh climate.
How long does the battery last?: The internal battery typically lasts up to 4 years under normal usage conditions.
