Eyebeams - wireless

Wiring Diagrams

DACE Ultima
Control Board

The control board will self detect the beams. You are not required to adjust any settings.

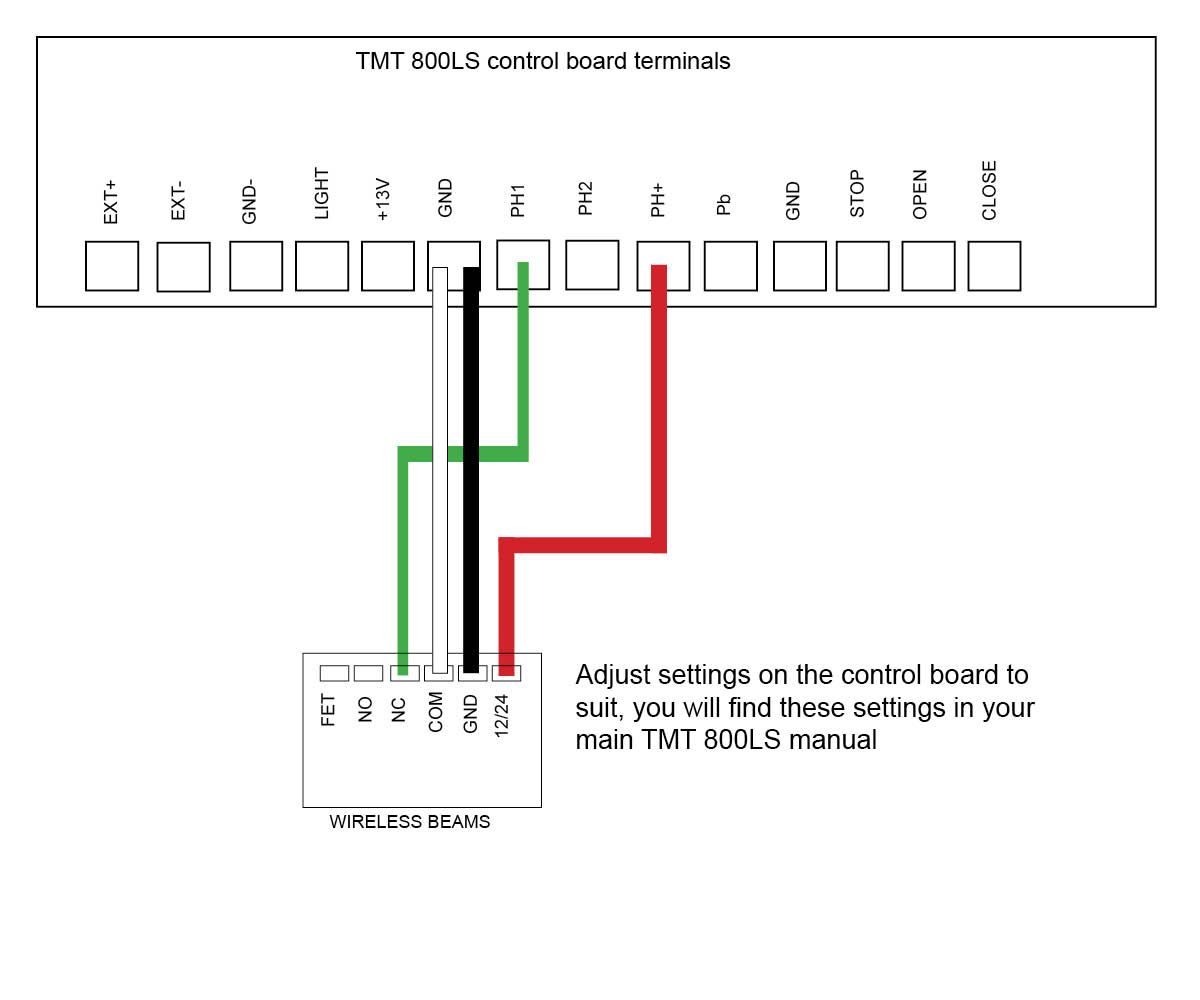

TMT 800LS
Control Board

E8 - EGA Swing
Control Board

Adjust PD (Infrared Terminal Set)
in the Menu Settings to 01

TMT 400LLS - Swing
Control Board

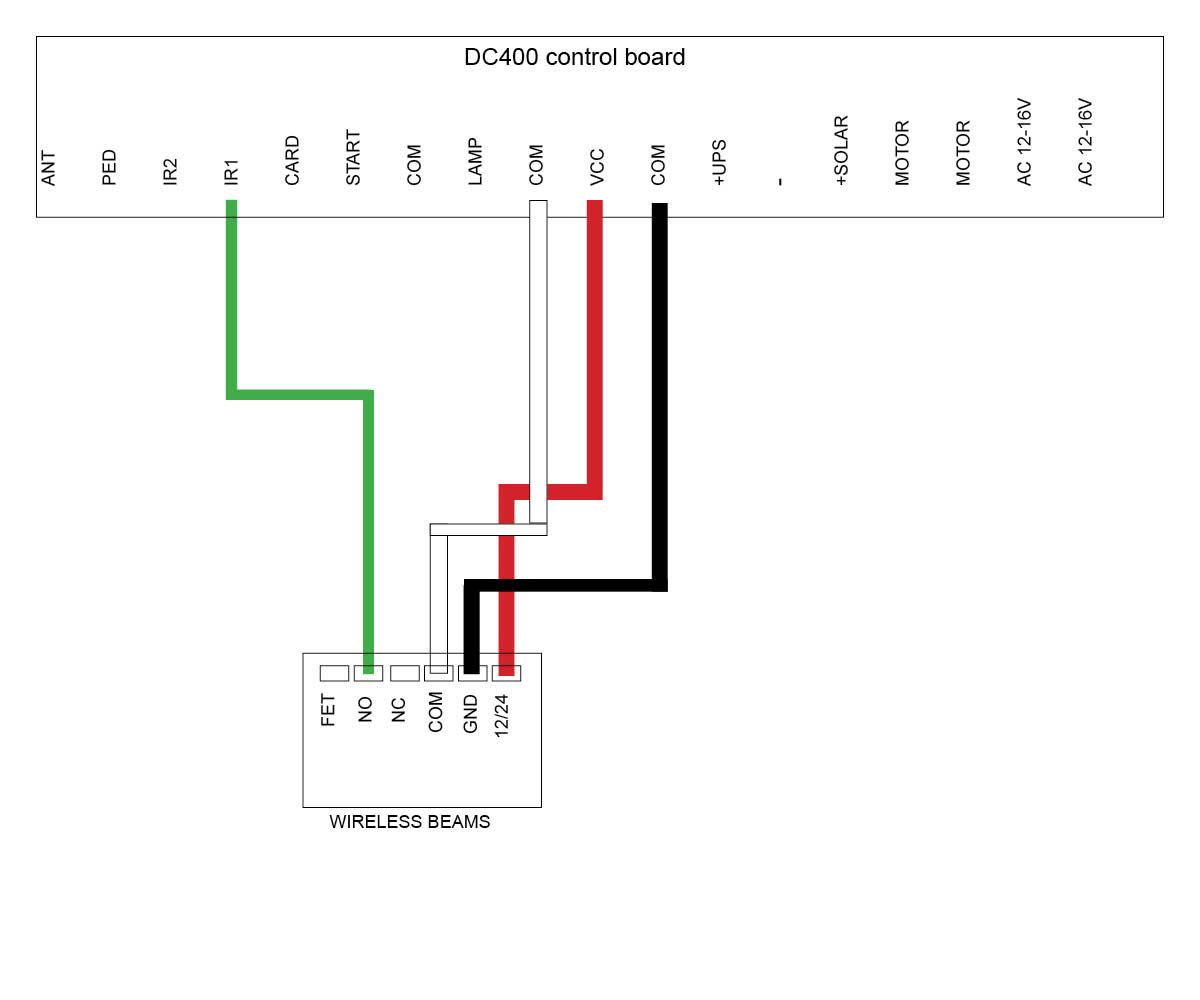

DC400
Control Board

E8 - D1 Swing
(discontinued)
Control Board

DACE Sprint/Condo
(discontinued)
Control Board

AC LW550
(discontinued)
Control Board
