GSM Gate Opener 3G/4G

4G GSM Update Click here
for units purchased before November 2024

Important steps before setting up:

  1. Insert Sim Card that has talk, text and data (Telstra, Optus or Aldi). The sim card must have data to allow the app to talk to the GSM unit.
  2. Connect antenna, now power up the GSM unit.
  3. Observe the RED GSM LED starts flashing quickly for about 60 seconds before flashing slowly for maybe 30 seconds and then the LED should go solid.
  4. Default setting it Telstra/Optus Sim. If you have an Aldi Sim card press the RESET button twice (2 beeps) now your GSM is set to Aldi.
  5. Now the GSM is on and connected to the 4G network via the data on the sim card.
  6. Now proceed with adding the device to your app.

What if I can't download the App?

If you are unable to download the "Xhouse IOT" App please refer to your user manual supplied with your GSM Device and follow the instructions on 'Without App Operation'.

For security reasons, we are unable to supply instructions via the website for this procedure

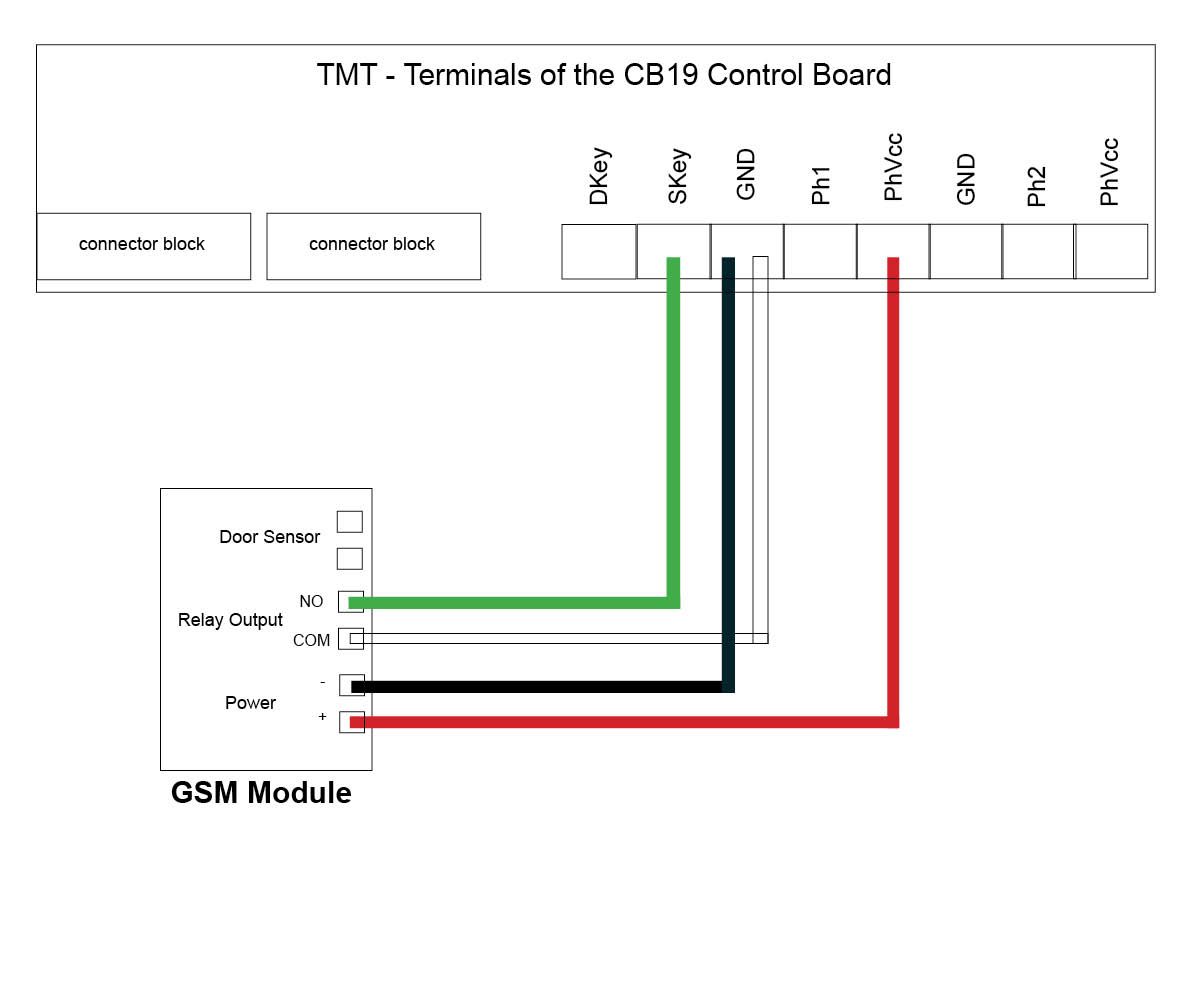

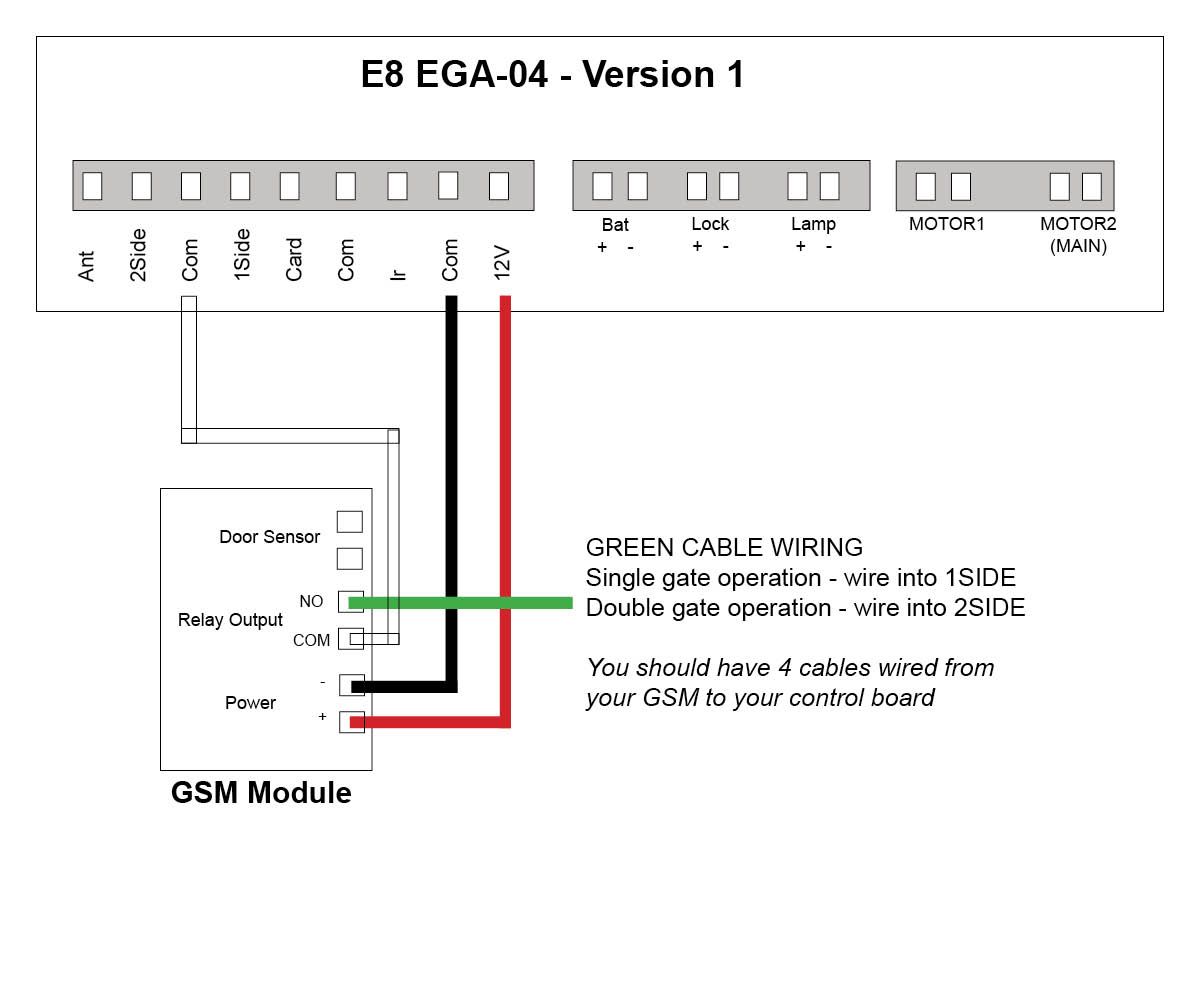

Click on the motor you have below to see wiring diagrams:

View the Door Sensor information below that matches your gate automation

Dace Ultima Motor

1. Go to the main screen and select 'Features'
2. Select 'Lock Settings'
3. Select 'Magnetic Lock'
4. Select Yes - go back to previous screen
5. Select 'Off When Open'
6. Select Yes - now back out of settings
