Long Range 7CH Receiver

This receiver will have a Purple Antenna

Programming a remote

  1. With the power connected to the receiver, place the black jumper link over the RELAY pins (if this is not already set).
  2. Press and hold the remote button to be programmed to the receiver. Wait for the green light on the receiver to flash quickly.
  3. While pressing the remote button, place the 2nd black jumper link over the REMOTE pins for 2 seconds (only) and then remove the black jumper link. Now test that the remote works.
  4. When finished, make sure to place the 2nd black jumper back on 1 pin only.

Erasing a single remote button from receiver

You will use the button that holds the position in the receiver immediately before the one that is to be erased!!

  1. With the power connected to the receiver, press and hold the button on the remote that was programmed to the receiver before the button that is to be erased.
  2. Place a link over the ERASE pins. The LED will flash twice and then remain solid.
  3. Release the remote button
  4. Remove the link.

The remote button is now erased from the receiver.

Erasing all remotes

  1. With the power connected to the receiver, place a link over the ERASE pins.
  2. The LED will flash ten times and then remain on solid.
  3. Remove the link.

The remote buttons have now been erased from the receiver.


  1. For optimum range it is advisable to place the receiver a minimum of 2 metres vertically away from the gate motor e.g. top of gate posts.
  2. When placing the receiver outside of the control box or motor housing it is important to use a weatherproof box with all entry points sealed. The standard receiver housing is only splash proof and not suitable for outdoor applications. **
  3. Make sure there are no exposed wires outside the receiver.
  4. Placing the receiver inside the motor housing will reduce the range of the receiver when the motor is in operation.
  5. Range may be affected by signals transmitted from another source.
  6. When coding remotes for use in a complex it is recommended that all remotes be physically numbered and a record be kept.

* All dependent on line of sight to the gate and interference which may reduce expected range. DO NOT ALTER THE ANTENNA IN ANY WAY (TUNED LENGTH ANTENNA)

** Warranty will void if the receiver housing has been placed outside and not in a recommended weatherproof box.

Tuning a wireless push button
Tuning a remote
Tuning a wireless keypad

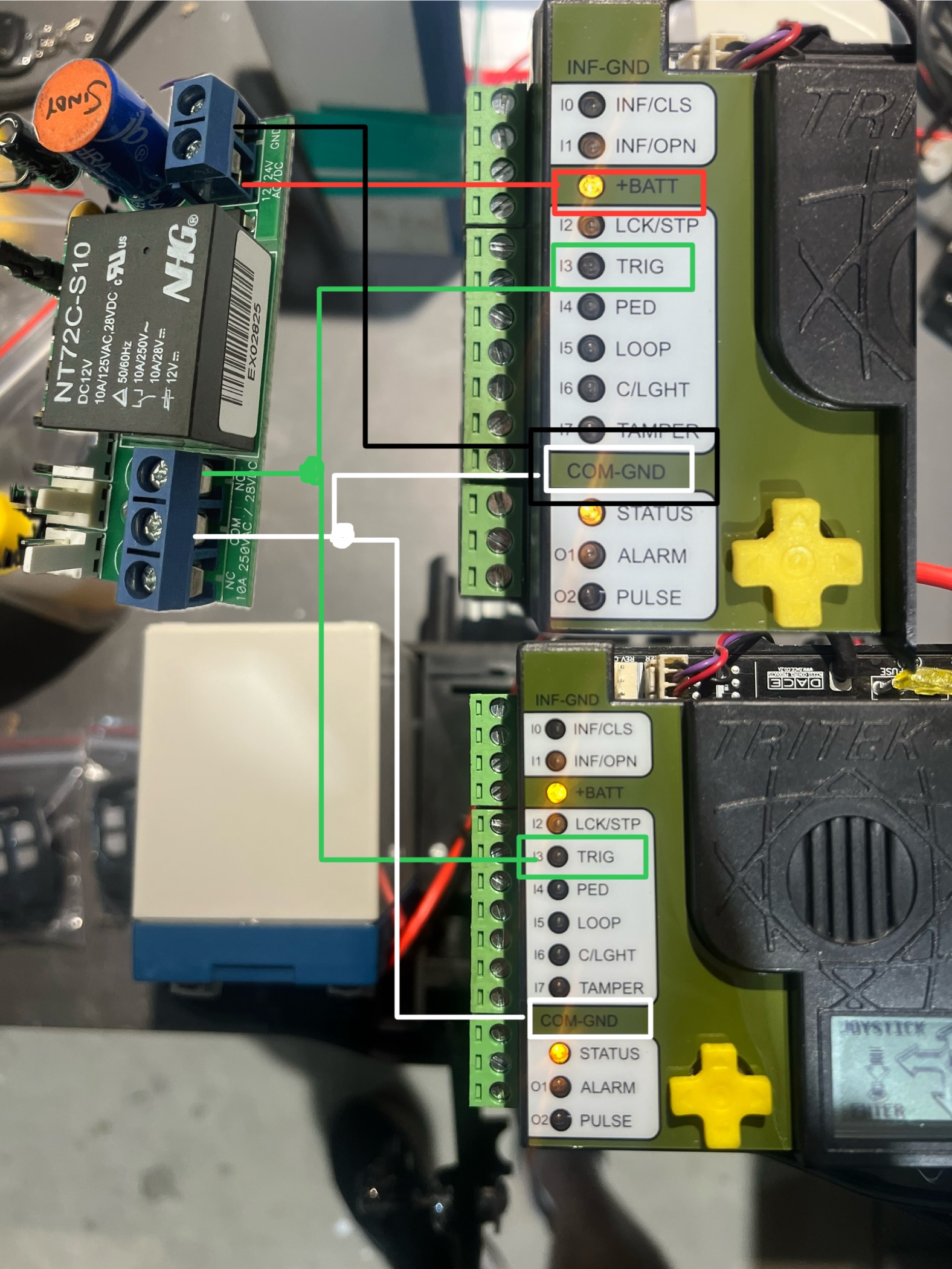

Wiring Diagrams

DACE Ultima
Control Board

E8 - EGA Swing
Control Board

TMT - Swing
Control Board

Control Board

E8 - D1 Swing
Control Board

DACE Sprint/Condo
Control Board

AC LW550
Control Board
