Long Range Receiver (Previous Model)

Troubleshoot this device

This receiver will have a Green Antenna

PROGRAM REMOTES TO THE RECEIVER

  1. Press and hold remote button that is to trigger the opener. It is important that this button is continuously held from step 1 through to step 3.
  2. Place the jumper over the two LEARN pins on the PC Board for 2 seconds.
  3. Remove the jumper from the two pins.
  4. Release the button on the remote.
    That particular button on the remote is now programmed to the receiver.
wiring long range receive

ERASE ALL REMOTES

  1. Place the jumper across the two ERASE pins
  2. The LED will flash 4 times to warn you that the remotes will be erased after which the LED will stay solid red
  3. When the LED remains on solid, all the remotes have been erased
    Remove the jumper
Tuning a remote to the long range receiver Green Antenna
Tuning a push button to the long range receiver Green Antenna

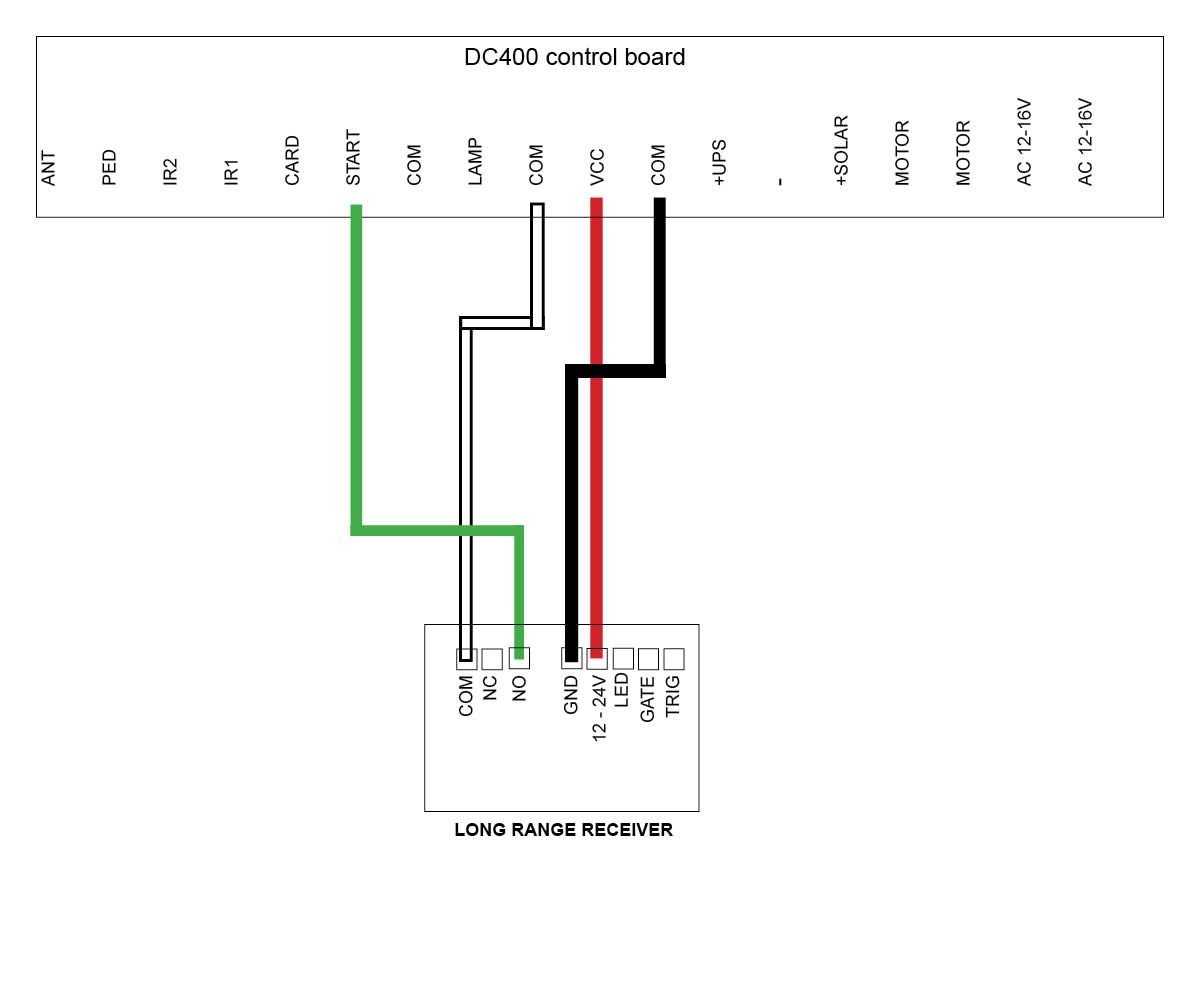

Click on the motor you have below to see the wiring diagram:

Troubleshooting the Long Range Receiver

This troubleshooting assumes that your keypad, remotes etc.. are in working order. If you have not done so already, troubleshoot these devices first!
  • Are there signs of insect infestation past or present inside the unit? Open up the receiver box and check there are no ants or insects past or present. If there is evidence of this then you will require a new receiver.
  • Check that the receiver is receiving a signal from the tuned device (keypad, push button or remote) by listening for a click sound coming from the receiver when the device is pressed. If you hear a click sound then you know you're getting power and the device is still tuned in. If you don't hear the click try re tuning the device to the receiver. see videos above for tuning help.
  • Is the receiver getting power and or the correct voltage required? Test with a multimeter to check power is making it to the receiver. You should be getting at least 12volts. If you don't get the correct voltage try replacing the cables. If the unit still doesn't work after new cable then you will need a new receiver.
  • If you are getting correct power to the receiver try removing the NO and COM cables from the receiver and tapping the bare cables together which should activate the gate. If the gate doesn't activate, replace cable.
  • If the gate activates when tapping the COM and NO cables together and you have the correct volts at the receiver, try re wiring the receiver and see if the unit works now. If no, then you will require a new receiver.
Buy new receiver here
