Orange Warning Light

SW1 Pins located on the warning light

Jumper on 2 pins = light flashes
Jumper on 1 pin = light remains on

Note: The antenna is not used with any of BMGi's products

Gate Warning Light

Wiring Diagrams

E8 Swing motor - EGA-04 version 1 board
Gate Warning Light wiring to E8 gate opener
E8 Swing motor - EGA-04 version 2 board with on/off switch
Gate Warning Light wiring to E8 gate opener
TMT 400LLS Swing motor
Gate Warning Light wiring to TMT 400LLS gate opener
TMT 800LS Slide motor
Gate Warning Light wiring to TMT 800LS gate opener
DACE Ultima Slide motor
Gate Warning Light wiring to DACE gate opener
Ultima Setup
  1. Go into FEATURES then into LIGHT SETTINGS by pressing the middle joystick button
  2. Move to PRE CLOSE FLASH then press the middle joystick button
  3. Now press up to YES and press the middle button
  4. Now press down and go BACK
  5. Now move to GATE SETUP and press the middle button
  6. Go to RUN PROFILE and press the middle button
  7. Go to MORE OPTIONS and press the middle button
  8. Go to PRE CLOSE DELAY and press the middle button
  9. Now adjust timing 1000ms = 1sec / 3sec delay = 3000ms
View more instructions here

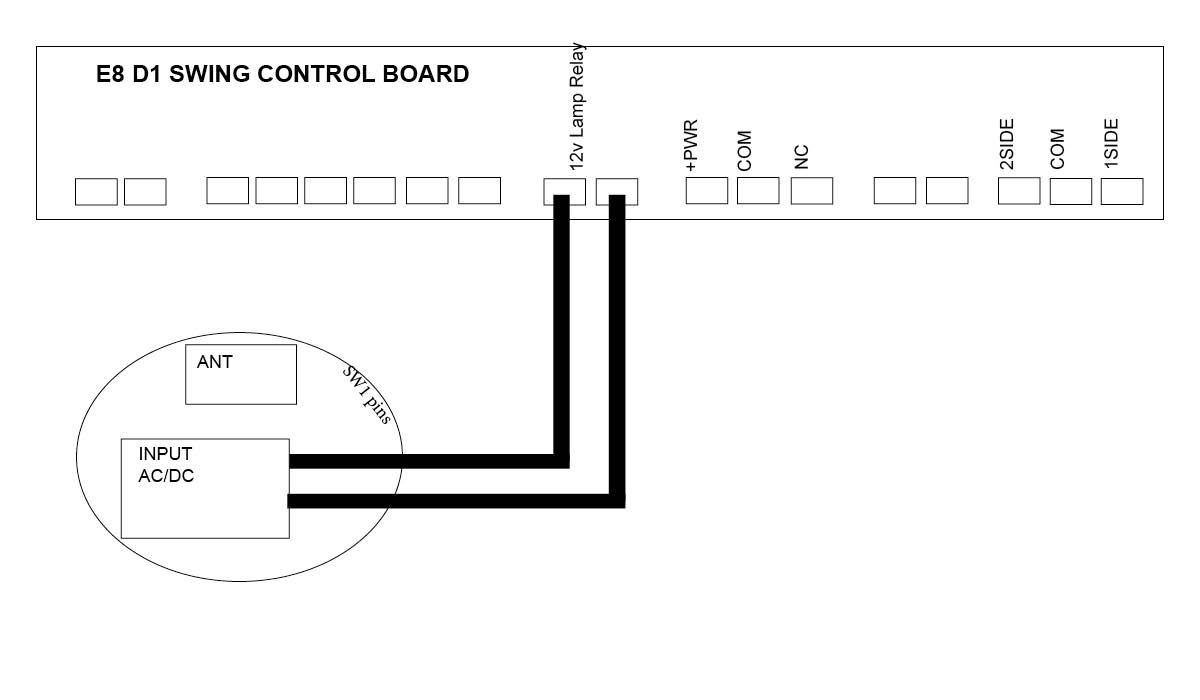

E8 Swing motor - D1 Board (Discontinued)
Gate Warning Light wiring to E8 gate opener
DC400 Slide motor (Discontinued)
Gate Warning Light wiring to DC400 gate opener
LW550 Slide motor (Discontinued)
Gate Warning Light wiring to LW550 gate opener
