TMT 400LLS Product Information

Heavy Duty Linear Actuator with Limits

Heavy Duty 24V Motor with a compact and clean appearance, powerful and quiet operation. In an emergency, a simple manual override is available through the supplied keys. The system can manage both light and heavy gates with a maximum weight of 450 kg or up to 5mtrs in gate length. Easy to change limit switches guarantee accurate setting of the open and closed positions and a less demanding life on your actuator arm.

Emergency Override

Simple to use manual override in case of an emergency. Simply insert the release key to unlock the actuator then turn the override knob.

Actuator Overview

Specifications

Max. Gate Length	5mtrs maximum*
Min. Gate Length	1.4mtrs minimum
Max. Weight of Gate	3mtrs/450kg
Max. Piston Speed	19.8mm/sec
Max. Piston Stroke	540mm
Power Supply	240VAC/24VAC 6A Transformer
Motor power Supply	Solar & Electric 24VDC
Driving Method	Screw Driven
Max. Output Power	144W
Manual Release	2 x keys
Ingress Protection Rating	IP44

Safety Clutch	Electronic current sensing
Electronic Controller	Micro-processor based
Remote Controller	On board receiver
Remote Quantity	80
Remote Tuning	Learning
Solar Panel	40watt
Battery	2 x 12v 14ah (solar)
Solar Panel Rated Voltage	36V
Solar Panel Rated Current	1.11A
Transformer Rated Voltage	24VAC
Transformer Rated Current	6A

* Provisions gate is level and plumb - hinges are ball bearing or nylon bush - all hardware in good working conditions

Installation Setup

Pull to open setup

This setup involves having the actuator on the inside of the property pulling the gate inwards to open. Post bracket mounted to the rear of the post.

Push to open setup - A

This setup involves having the actuator on the inside of the property pushing the gate outwards to open. Post bracket mounted to the rear of the post. This will be known as option A in the installation manual. For this setup you will be required to purchase the 'Push to Open Bracket'.

Push to open setup - B

This setup involves having the actuator on the inside of the property pushing the gate outwards to open. Post bracket mounted to the inside face of the post or on the same face that the gate is hinged from. This will be known as option B in the installation manual.

Gate Opener Setup - Single and Double Gates

Single Swing Setup

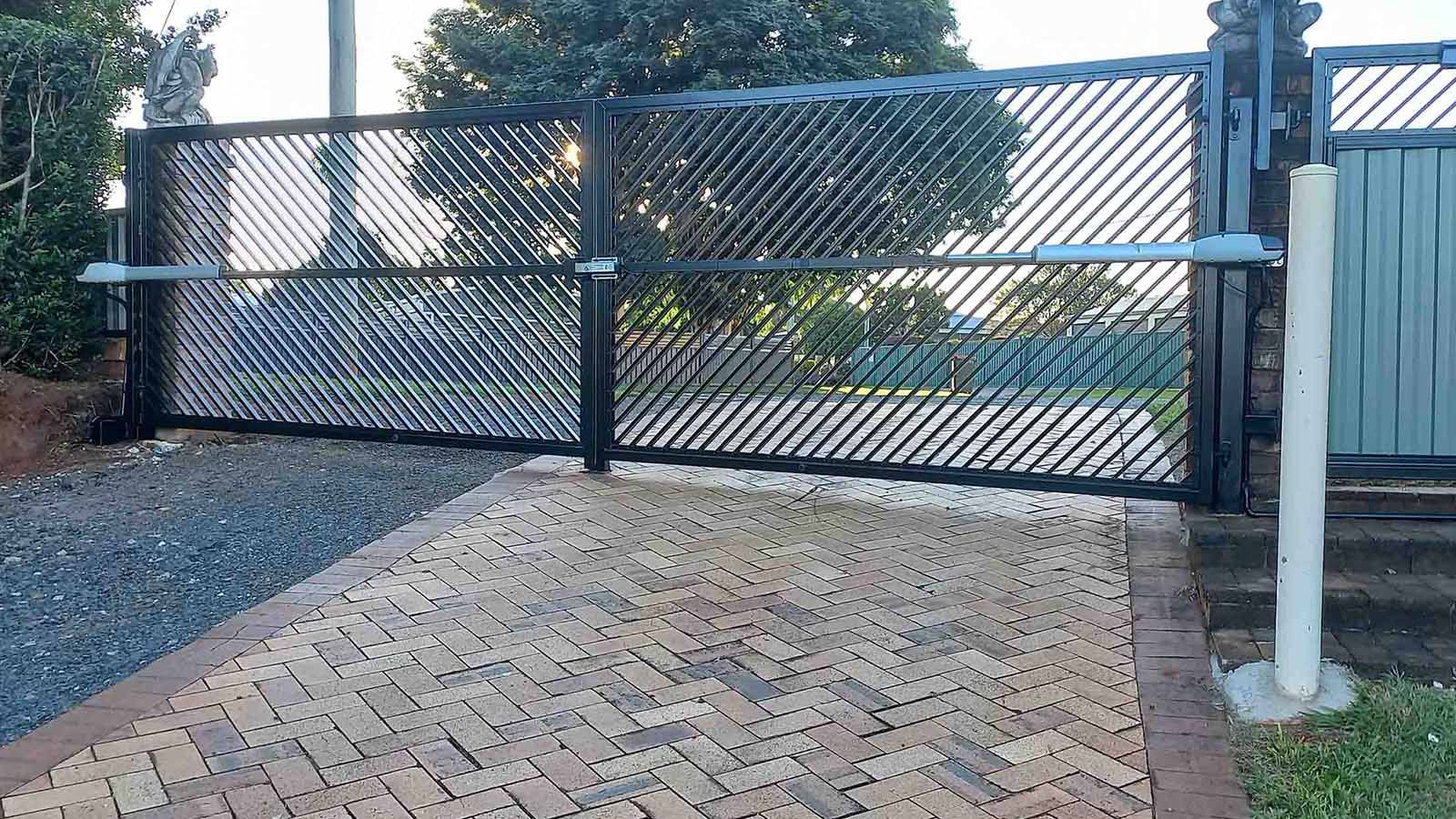

Double Swing Setup

** Be aware of the size of your gate posts and hinge position as your gate/s should be no more than 100mm in from the back of your post corner. This is particularly important if you want the actuator arm on the inside of the property pulling the gate inwards to open.

Specifications

Max Gate Length: 5mtrs
Max Gate Weight: 450kgs
Gear Type: Worm gear

Power Supply: 110-240VAC (50-60Hz)
Motor Power Supply: 24VDC
Peak Thrust: 4500N

Enclosure Dimensions(mnm): 1041*172*325
Manual Release: Key
2 limit options: limits or overcurrent

Main Control Box

Main Control box
Size: 190mm W x 270mm L x 100mm D

Internal box showing control board
Weatherproof glands for wiring connections

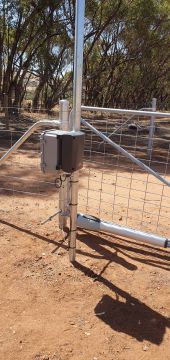

When mounting the control box, we recommend mounting no further than 1.5mtrs from the gate post, helping to prevent any power drop that may occur if running further than this.

If installing the transformer kit, you can place the transformer up to 30mtrs away from the gate and run low voltage cable back down to the main control box which will be located near or on the gate post.

If installing the solar kit, you can run your solar panel cable up to 30mtrs away from the gate where your control box is installed.

Solar Battery box with Solar Kit

Solar battery box to house your 2 x 12v 14ah batteries and solar charger.

Battery box has side clips for easy access.
Size: 230mm W x 320mm L x 150mm D

Solid steel mounting bracket to hold the weight of the battery box.

Solar battery box internal with bracket and shelf to house your batteries.

2 bottom glads for cable access along with 3 spare glands provided.

Final setup with 2 x 12v 14ah batteries and solar regulator.

40watt Solar panel - 24v

Supplied with mounting bracket and 10mtrs cable
Panel size: 350mm W x 650mm L
Specifications:
Maximum Power (Pmax) ............ 40
Rated Voltage (Vmp) ............. 36V
Rated Current ................... 1.11A
Open Circuit Voltage ............ 43.2V
Short Circuit Current ........... 1.19A
Maximum System Voltage .......... 600V
