24V SLIDING GATE MOTOR

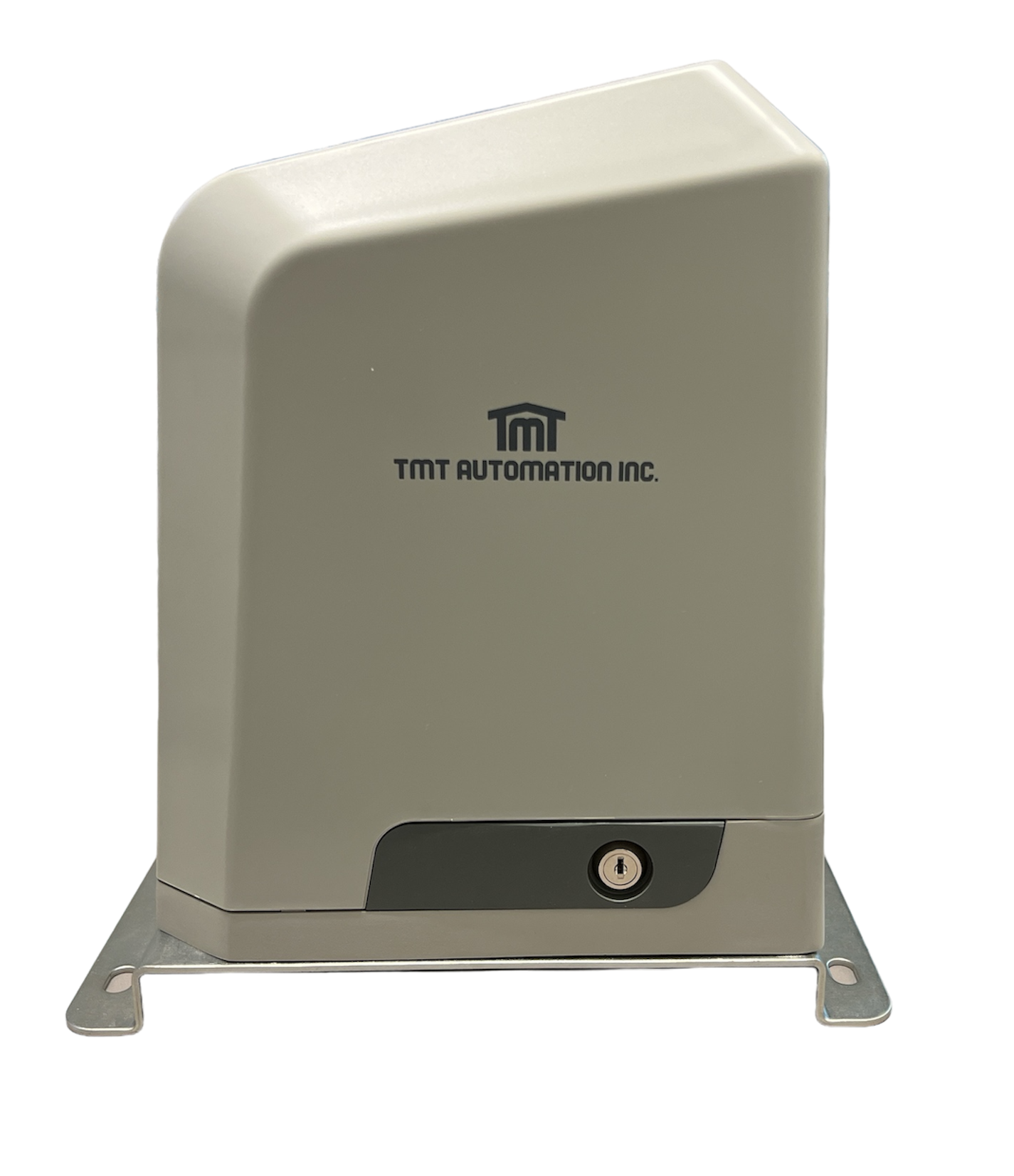

TMT-800LS Heavy Duty Sliding Gate Motor

A fast, DIY-friendly 24V opener built for gates up to 800kg and 8m — with soft start/stop, obstacle detection and an optional battery backup for when the power drops.

$770 Buy Now

✔ DIY-friendly install | ✔ Soft start soft stop | ✔ Obstacle detection | ✔ 2 year warranty

IS THIS THE RIGHT MOTOR FOR YOUR GATE?

Gate type	Suitable
Residential sliding gates	YES
Acreage properties	YES
Heavy gates — level ground	YES
High traffic gates	YES
Solar-only installation	NO
Gates over 800kg	NO

WHAT'S IN THE BOX

TMT-800LS Electric Kit

$770

Motor with base plate
2 × release keyss

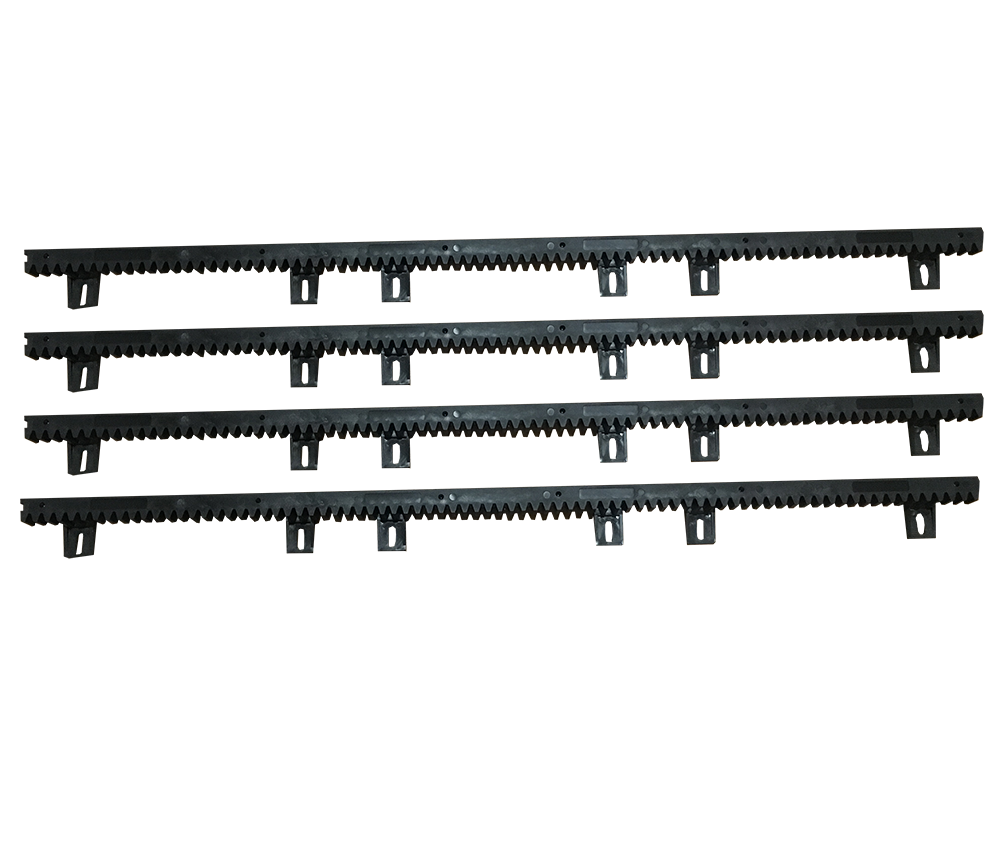

4m nylon racking
2 × remotes, with free holders
1 × transformer (internal or external option)
Backup battery — optional, not included

BUY NOW

Internal transformer

Hardwired to 240V, or plugged into a power point right at the gate.

External transformer

Requires a physical power point that can be up to 30mtrs from the gate motor

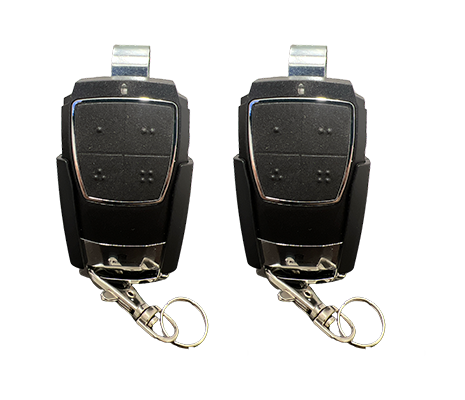

2 x Remotes

SIDE BY SIDE

Full Specifications Comparison - click here to view

Specifications	DACE Ultima RT25	DACE Ultima HT18	DACE Ultima AC/DC 500	DACE Ultima AC/DC 800
Max Gate Weight	500kgs	600kgs	500kgs	800kgs
Max Gate Length	15m	15m	20m	20m
Max Running Speed	25m/min	18m/min	40m/min	28m/min
Cycles Per Day	45	45	1500	1500
Max Startup Force	22 kgf	28 kgf	22 kgf	32 kgf
Max Running Force	15 kgf	18 kgf	15 kgf	22 kgf
Motor Power	120watts	120watts	120watts	120watts
Motor RPM	4500rpm	3100rpm	4500rpm	3100rpm
External Pinion Gear	Steel	Steel	Steel	Steel
Internal Drive Gear	Steel	Steel	Steel	Steel
Onboard Receiver	1024	1024	1024	1024
Battery Operated	✔ Included (12v)	✔ Included (12v)	Optional (12v)	Optional (12v)
Solar Kit Available	✔ Yes	✔ Yes	✘ No	✘ No
Auto Close	0-30min	0-30min	0-30min	0-30min
Pedestrian Mode	Yes	Yes	Yes	Yes
Party Mode	Yes	Yes	Yes	Yes
Manual Release	Yes	Yes	Yes	Yes
Collision Sensing	Close & Open cycle	Close & Open cycle	Close & Open cycle	Close & Open cycle
Transformer Supply	220–240V AC	220–240V AC	220–240V AC (inbuilt toroidal)	220–240V AC (inbuilt toroidal)
USB Software Upgrades	✔ Yes	✔ Yes	✔ Yes	✔ Yes
Self Diagnostics Screen	✔ Yes	✔ Yes	✔ Yes	✔ Yes

* Please note that the operation speed is dependent on the gates weight and pull force

ALL FOUR MODELS INCLUDE

Shared features across the Ultima range

⚙️
Steel Internal Gears

Both the internal drive gear and external pinion are steel for longer lifespan and better shock tolerance when obstructions are detected.

🖥️
Large Graphics Display

On-board help screens and joystick navigation make setup and troubleshooting straightforward without needing a laptop or app.

🔊
Voice Prompts

Audio guidance walks you through installation step by step — ideal for first-time DIY installers.

📡
1024 Remote Capacity

Program up to 1024 code-hopping remotes across 16 channels. Time manager controls up to 840 events.

💾
USB Software Updates

Firmware is updated via USB, and BMGi ships units with the latest software already loaded before despatch.

🛡️
Collision Sensing

Adjustable force sensing in both open and close directions — gate reverses automatically if an obstacle is detected.

😴
Sleep Modes

Three sleep levels (light, medium, deep) keep energy consumption low during quiet periods.

🔧
8 Inputs / 5 Outputs

Full integration support for keypads, intercoms, safety beams, and other access control accessories.

ADD TO ANY KIT

Optional Accessories

GSM Gate Opener $240

Open your gate from your phone

Buy Now

Wireless Keypad
$150

PIN access — no remote needed.

Buy Now

Visitor Push Button
$35

Visitor Push Button - Entry & Exit

Buy Now

Semi Wireless Beams
$120

Prevent the gate from closing on a vehicle.

Buy Now

COMMON QUESTIONS

Frequently asked questions

Can these motors run during a power outage?
Yes. The RT25 and HT18 run off an included 12V battery (charged by transformer or solar). The AC/DC 800 supports optional battery backup — add a 12V 7Ah battery.

What's the maximum gate size each model handles?
The RT25 and HT18 both handle gates up to 15m. The AC/DC 800 and 500 handle gates up to 20m in length.

Can I install these myself?
Yes — all four are supplied as DIY kits. The 12V low-voltage system means no electrician is required. Low-voltage cable can be stapled along the fence or buried just 100mm underground.

Are these motors weather resistant?
Yes. All four models are designed for outdoor Australian conditions. The transformer included in the electric kits for the RT and HT is rated IP67.

Is there an obstruction safety feature?
Yes — all models include adjustable collision sensing in both the open and close directions.

Can I set the gate to auto-close?
Yes. All models have configurable auto-close times from 0 to 30 minutes.

What warranty is included?
All four models include a 2-year back-to-base warranty covering the motor, gearbox, and control board.

How do I measure if my gate is suitable?
Measure startup force and running force with a luggage or fishing scale. Also calculate effective gate weight if your driveway has a gradient (formula: 40 × gradient + actual gate weight).

What happens if I have questions when I'm installing?
If you have questions throughout the installation, you can call the office Monday - Friday to speak with our trained staff PH: 07 3205 3002
