Tuning BMGi's wireless keypad to the correct device

Need help identifying which device you have to tune your wireless keypad to.
Search our products below to match your system or device and watch the corresponding video.
E8 500kit - latest model - swing gate
If you have an E8 500kit with an EGA control board version 1 or 2 as shown below - watch this video for tuning instructions
E8 500kit - old model - swing gate

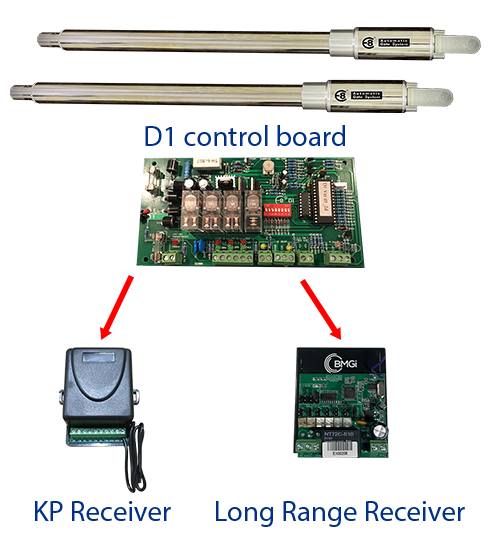

If you have an E8 500kit with a D1 control board as shown below you will have a separate receiver to tune your keypad to.
Check which receiver you have in your kit from the image below and watch the corresponding video for instructions.
The KP receiver will be located in the main control box and the Long Range Receiver may be located either inside the main control box or outside on your post.
You will need to open up your receiver to get to the small main board to do the tuning.
How to tune your keypad to the KP Receiver
How to tune your keypad to the LR Receiver with the purple antenna.
Note: if you don't have the black jumper you can use a small screw driver to bridge the 2 pins.
DACE Ultima - slide gate

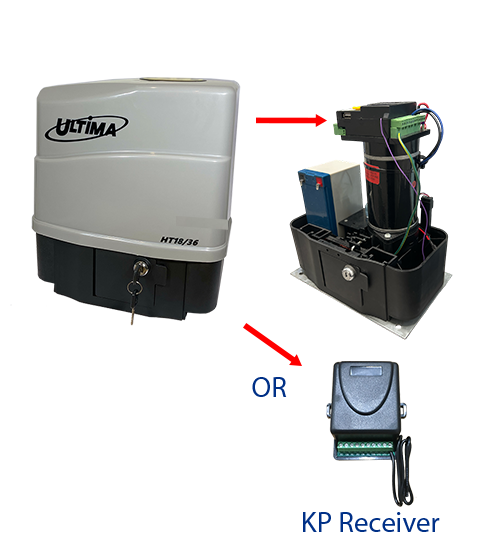

If you have a DACE Ultima kit as shown below - watch this video for tuning instructions.
You will need to remove the top cover off the motor to get to the main control board.
You will either tune the keypad direct to the main control board, however if you have a KP receiver in your unit from an early DACE model then we recommend tuning your keypad to the KP Receiver.
How to tune your keypad to the DACE Ultima
How to tune your keypad to the KP Receiver
TMT 400LLS - swing gate

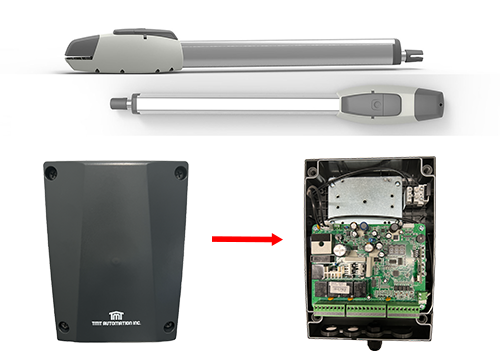

If you have the TMT 400LLS kit as shown below - watch this video for tuning instructions.
You will find the main control board inside the main control box as shown in photo.
How to tune your keypad to the TMT 400LLS
TMT 800LS - slide gate

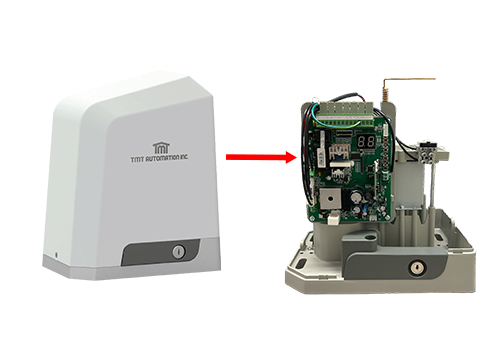

If you have the TMT 800LS kit as shown below - watch this video for tuning instructions.
You will need to remove the top cover off the motor to get to the main control board.
How to tune your keypad to the TMT 800LS
