Wireless Keypad & KP Receiver

If you require extra security on your keypad, then it is recommended that you change the factory program code (0000) to a secure code which you must make note of. Failing to make note of your new program code will prevent you from being able to add or delete pin codes in the future. You would then be required to perform the 'Keypad reset'.

Factory pin code in the keypad to start off with is 1111#. When entering in your first pin code the factory pin code will be wiped.

Pairing the receiver to the wireless keypad

You must have a 4digit pin number setup in your keypad before pairing

  1. Press P1 on the receiver board (red LED will go solid)
  2. Enter your pin code = ? ? ? ? # (red LED will flash to say keypad and receiver are paired)

Deleting KP recevier memory

  • Press P2 on the receiver board for 8 seconds (red LED will go solid, keypad and receiver now unpaired)

Setting up a 4 digit pin code in your keypad

  1. Enter program code (factory 0000) then press *
  2. Press 0 1 #
  3. Enter your pin code = ? ? ? ? # (pin code now entered)

Delete a single pin code from the keypad

  1. Enter program code (factory 0000) then press *
  2. Press 5 8 #
  3. Enter 4 digit pin number that you want to delete (keypad will give 1 long beep followed by a short beep to indicate the pin code deleted)

Erasing all pin codes from the keypad

  1. Enter your program code (Factory is 0000) then press *
  2. Press 0 0 #
  3. Now all pin codes will be wiped and set back to the factory pin code 1111#

Turn off/on keypad backlight

  1. Enter program code (factory 0000) then press *
  2. Press 3 9 #

Battery test

  1. Enter program code (factory 0000) then press *
  2. Press 8 9 # (battery is OK with a long beep or if battery is low there will be a short beep and the red LED indicator will show)

Keypad resetting

  1. Remove the keypad from weather shield
  2. Your keypad should now be awake with the alarm activated
  3. While the keypad alarm is going off, press the reset button located on top of the keypad for 5 seconds until all LED lights come on
  4. Now release the reset button, resetting is now complete (all keypad codes will be cleared and reset to factory)
  5. Place the keypad back into the weather shield

The keypad will now be reset to 0000 program code and 1111 factory pin code.

Changing the 4 digit ‘program code’ (0000)

Your program code only requires to be changed if you require extra security on your keypad. You will need to take note of your program code as this will be used to add or delete pin codes in the future.

  1. Enter program code = 0 0 0 0 *
  2. Press 6 9 #
  3. Enter new 4 digit program mode code #

Security lock

Keypad will allow three attempts of a wrong pin code entry. After the third wrong entry the keypad will be locked for 2 minutes with 3 beeps and the red LED light will come on. 2 minutes later, the keypad would have one beep sound and the red LED indicator will go off to indicate the keypad is unlocked.

How to tune the wireless keypad to the KP Receiver

How to tune change your programming code

How to add a pin number

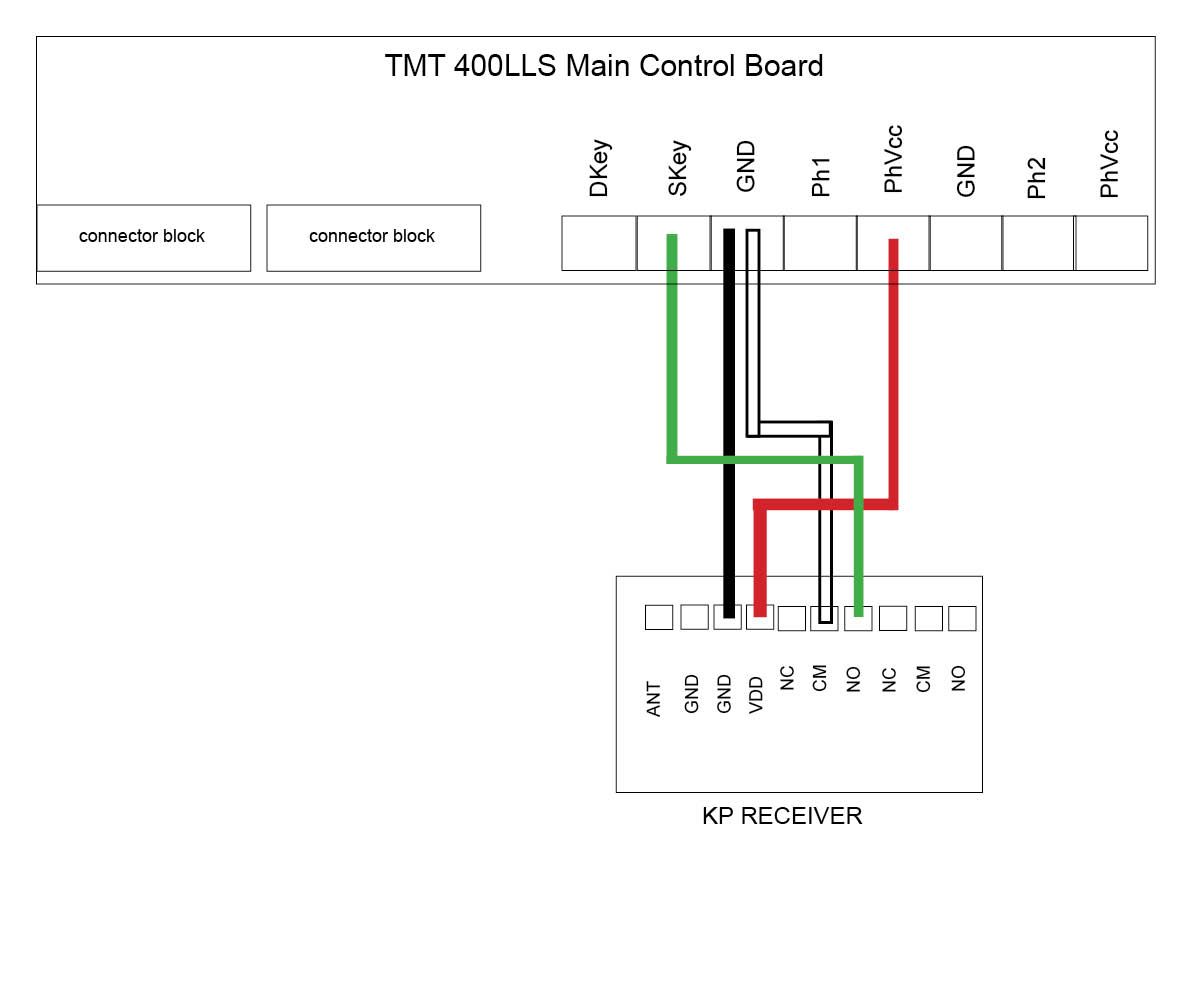

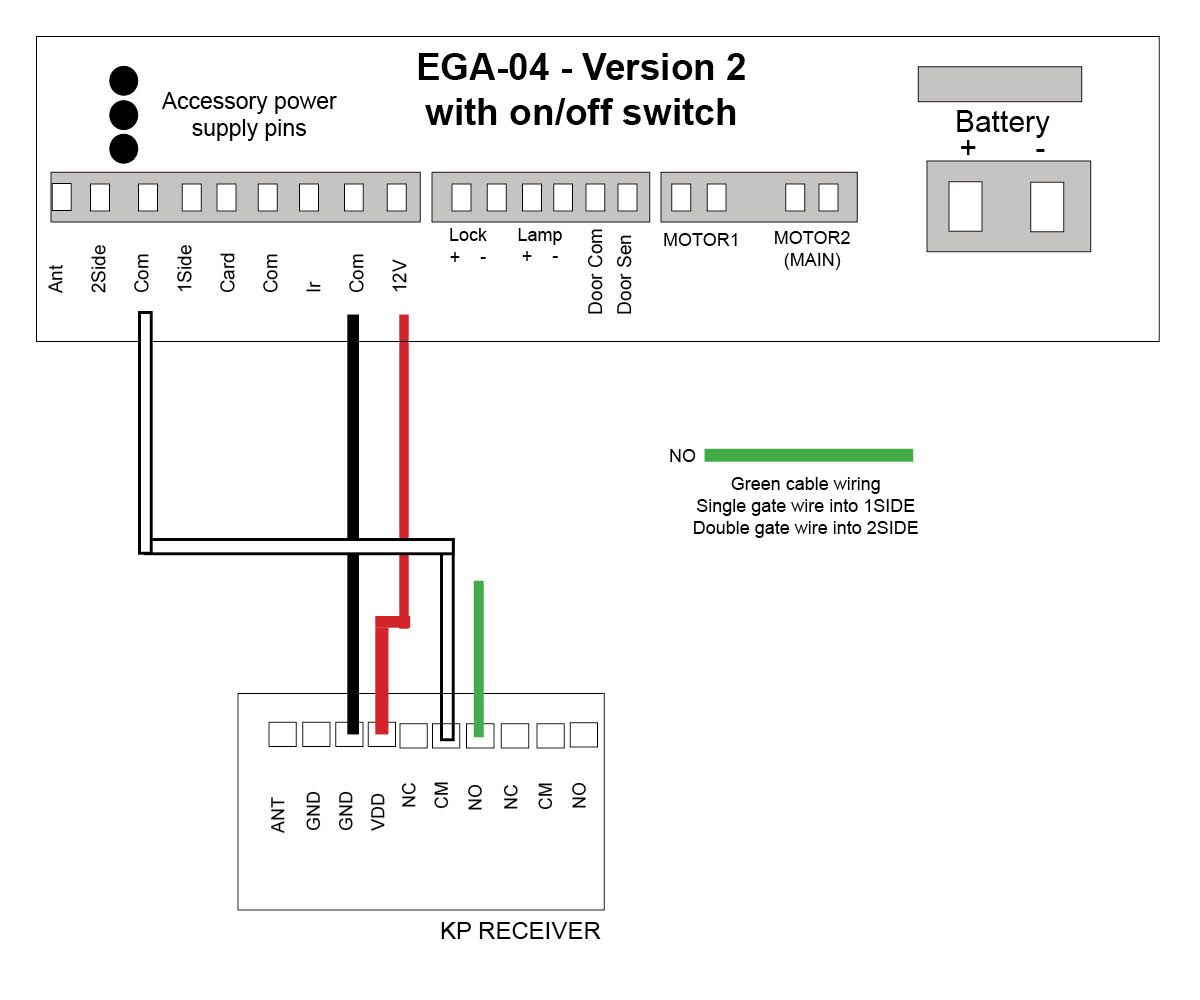

Wiring Diagrams

DACE Ultima
Control Board

E8 - EGA Swing
Control Board

DC400
Control Board

E8 - D1 Swing
(discontinued)
Control Board

DACE Sprint/Condo
(discontinued)
Control Board

AC LW550
(discontinued)
Control Board
