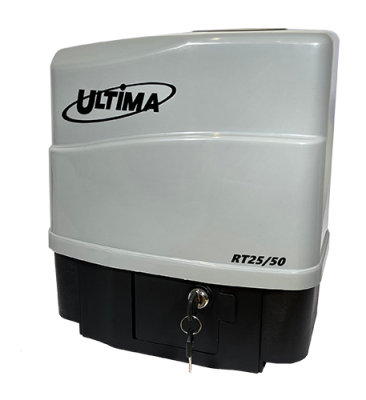

DACE Ultima RT25/50
With BMGi exclusive upgraded steel internal gear!
The DACE ULTIMA RT series is the ultimate sliding gate motor for residential use.
Model: RT/50 $825
-
Motor with Base Plate
-
4mtrs Nylon Racking
-
2 x Remotes
-
Battery to suit model
-
2 x Release keys
-
Outdoor Transformer
-
Motor with Base Plate
-
4mtrs Nylon Racking
-
2 x Remotes
-
12volt 14ah Battery
-
2 x Release keys
-
PWM solar charger
-
45watt Solar panel with mounting bracket & 10mtrs cable
To suit BMGi's standards, we have engineered the Ultima's internal gear with a steel internal design to go with our steel internal drive gear. This ensures the motor has a higher life expectancy and allows our units to be more shock tolerant when an unexpected obstruction is sensed.
The driveway gate pull and running forces should be measured before purchasing or installing any gate opener. Should the measured forces exceed those in the table above for the Ultima units, then the motor must not be installed. It may be possible to reduce these forces by carrying out maintenance on the gate rail but if not, then the motor must not be installed.
These forces can be measured using a fishing or luggage scale (see figure above).
Pull Force: place the gate in the fully open/closed position and pull on the scale until the gate starts moving. The value showing on the scale at the point that the gate starts moving is the Pull Force kgf. This should be checked in both directions.
Running Force: this is the maximum value read while the gate is moving before coming to the fully open position.
Gradient = A (0.3m) / B (4m)
Effective Gate Weight
When is a 200kg gate really 800kgs - Working out the effective gate weight
Effective Gate Weight = 40 x gradient + 1 x actual gate weight
Eg. A driveway, that falls 300mm over 4m (.300/4 = .075 gradient) has an effective weight of 800kgs
Effective Gate Weight = 40 x .075 + 1 x 200
Therefore, the example above wouldn't suit either of these motors
Other Examples:
80kg actual gate weight - Fall 100mm over 4m = 160kg effective gate weight
80kg actual gate weight - Fall 200mm over 5m = 208kg effective gate weight
150kg actual gate weight - Fall 350mm over 6m = 266kg effective gate weight
