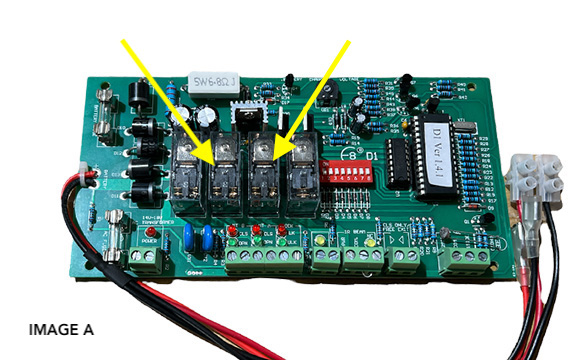

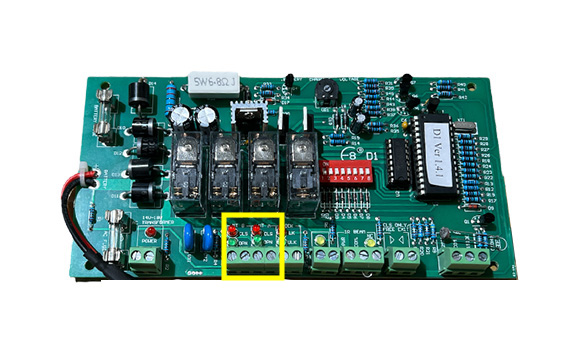

Written by Super User on 21 July 2022. Posted in Uncategorised. Solar Swing Gate Not Working D1 Board Solar Swing Gate Not Working (D1 Board) When you use a remote or accessory to work the gate, do the relays (see image A) on the control board click? Is the NC light on (see image B)? yes, relays click, NC is on yes, relays click but the NC is off no, board doesn’t click Invalid Input Make sure the loop wire (see image C) is in between the NC and COM screws and done up tight. Does the gate operate now? yes no Invalid Input Try bridging the D14 Diode (see image D). Operate your gate, does it work now? yes no Invalid Input Check top left fuse, remove fuse from the board, count to 5 and place back in its fuse holder. Does the board fire up? yes no Invalid Input Remove the bottom left fuse and place into the top left fuse holder. Does the board fire up? does it now operate? yes, it now works yes, it clicks but still not working no, there is no clicking Invalid Input Do you have a multimeter? yes no Invalid Input Check voltage at the control board NC and COM (see image E), they should be reading a minimum of 11.5volts. Are you getting this or higher? yes no Invalid Input Check your battery voltage, is it reading under 12v? yes no Invalid Input If you have a working 12v battery, try it on your system. Does the gate operate now? yes no Invalid Input Check your actuator is working. Does your actuator work off the battery? yes no Invalid Input You need a new control board Order here or call the office if you need to discuss further on 07 3205 3002 You need a new actuator arm Order here or call the office if you need to discuss further on 07 3205 3002 Congratulations you have fixed the problem! Please call our office if you feel that you need to discuss further 07 3205 3002 Read more: Solar Swing Gate Not Working D1 Board Hits: 25684
Written by Super User on 15 July 2022. Posted in Uncategorised. Remote Troubleshooting Remote Troubleshooting Do any other remotes work? yes no Invalid Input Replace the battery, does it work? yes no Invalid Input Try tuning your remote, does it work? yes no Invalid Input You need a new remote. You can order online HERE Please Troubleshoot your receiver Congratulations you have fixed the problem! Read more: Remote Troubleshooting Hits: 21195
Written by Super User on 15 July 2022. Posted in Uncategorised. Wireless Push Button Troubleshooting Wireless Push Button troubleshooting Push button does not work, but other accessories do work? Yes, other accessories work No, nothing works Invalid Input Are there signs of insect infestation past or present inside the unit? yes no Invalid Input Is there signs of corrosion? yes no Invalid Input Have you changed the battery? did it fix the problem? yes no Invalid Input How is your button connected to your opener? Direct to main board Separate receiver wired to main board Invalid Input When you press the button, does your receiver respond? yes no Invalid Input Tried pairing again? Does the gate operate after pairing? yes no Invalid Input Congratulations you have fixed the problem! You need a new wireless push button You can order a replacement from HERE Please Troubleshoot your receiver Please call the office for technical assistance 07 3205 3002 and press 2 for support. Read more: Wireless Push Button Troubleshooting Hits: 21053
