sliding gates

Heavy-Duty Sliding Gates | Auto & Electric Gate Systems

Our sliding gates are ideal for residential and rural properties. Whether you're looking for a manual solution or fully automated operation, we can supply DIY electric gates, solar gates and auto gate systems tailored to Australian conditions. Designed for strength, reliability, and ease of use, our sliding gate systems are a smart choice for securing driveways, farms, and industrial access points.

Ultima AC/DC800
Sliding Gates

DACE Ultima ACDC auto gate opener for sliding gates

2 x Free Remotes added

Max Gate Length
20mtrs

Max Gate Weight
800kgs*

Power Source
Inbuilt Transformer
(Powerpoint at the Gate)

Ultima HT18
Sliding Gates

2 x Free Remotes added

Max Gate Length
15mtrs

Max Gate Weight
600kgs*

Power Source
Solar or
Outdoor Transformer
(Powerpoint 50m away)

Ultima RT25
Sliding Gates

Ultima RT automatic gate system for residential properties

2 x Free Remotes added

Max Gate Length
15mtrs

Max Gate Weight
500kgs*

Power Source
Solar or
Outdoor Transformer
(Powerpoint 50m away)

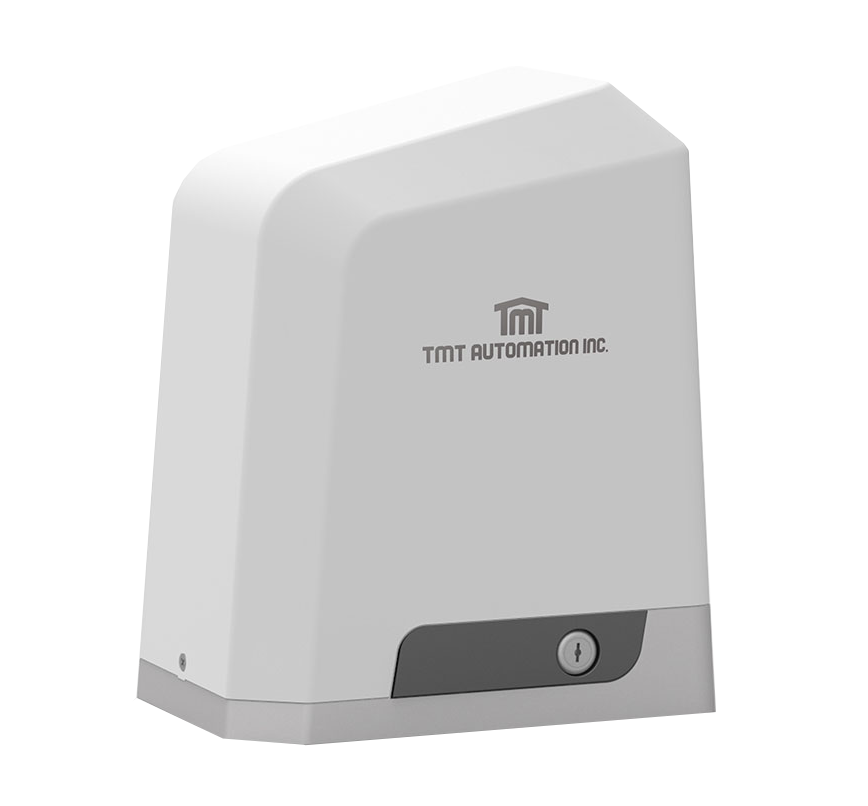

TMT 800LS
Sliding Gates

TMT 800LS auto gate opener for rural and residential land

Max Gate Length
8mtrs

Max Gate Weight
800kgs*

Power Source
Inbuilt Transformer
(Power at gate)
Outdoor Transformer
(Powerpoint 30m away)

Click here to compare the motors above

Heavy-Duty Sliding Gates for Homes, Farms & Commercial Properties

BMGi offers a premium range of sliding gates designed for security, convenience, and long-lasting performance. Whether you're securing a residential driveway, farm entrance, or commercial premises, our gates are built tough for Australian conditions. Our sliding gate systems can be customised to suit various widths, materials, and finishes. From steel and aluminium to timber options, we create gates that not only perform but also complement your property’s style.

Electric
Powerpoint at the gate

Ultima ACDC auto gate opener, sliding gates, electric sliding gate, auto sliding gate

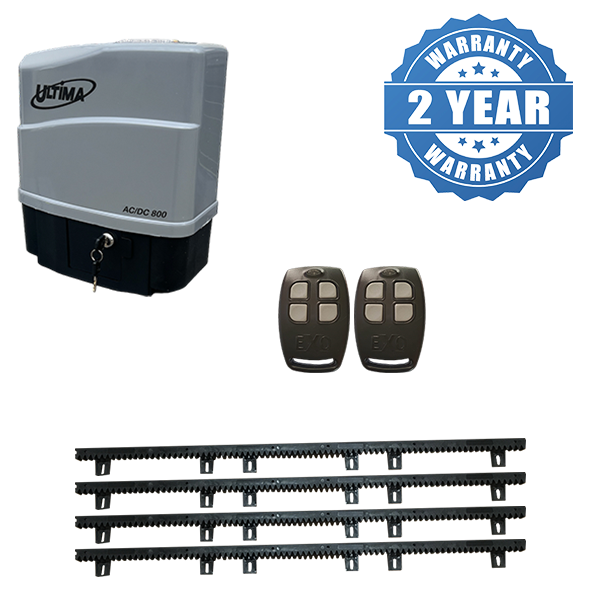

Ultima AC/DC800 Electric

$990

High Traffic
Maximum 800kg Weight*
Maximum 20m Gate Length
Speed: 30mtrs/min
Residential & Light Commercial
Cycles per day: 1500
Powerpoint at the Gate
Internal Transformer
Backup Battery Optional
Advanced Tritek Board
Steel Internal Drive Gear
Adjustable Open & Close Speeds
2 Year Warranty

Electric
Powerpoint up to 50mtrs away

Ultima HT auto gate opener, sliding gates, electric sliding gate, auto sliding gate

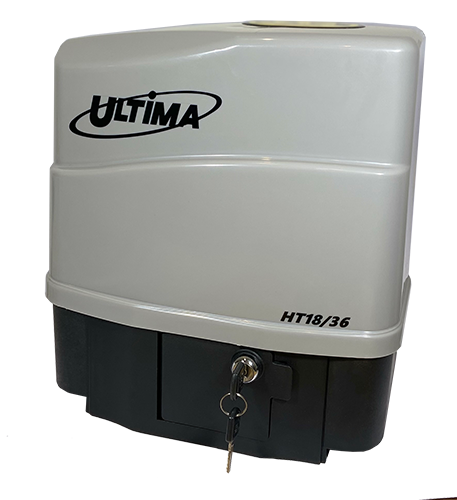

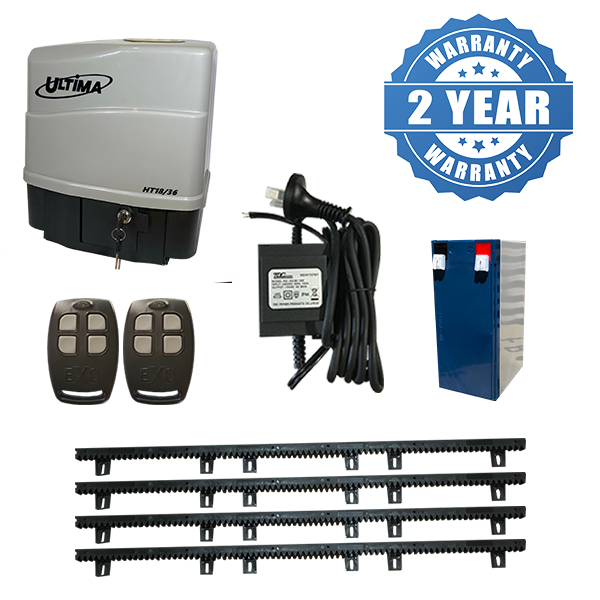

Ultima HT 18 Electric

$955

High Traffic
Maximum 600kg Weight*
Maximum 15m Gate Length
Speed: 18mtrs/min
Residential & Light Commercial
Cycles per day: 45
Powerpoint up to 50mtrs away
External Transformer
Battery Operated x 1
Advanced Tritek Board
Steel Internal Drive Gear
Adjustable Open & Close Speeds
2 Year Warranty

Solar
Standalone System

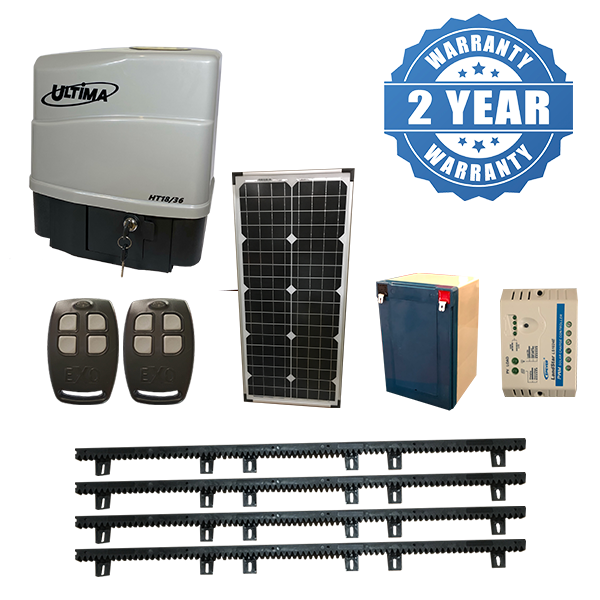

Ultima HT 18 Solar

$1115

High Traffic
Maximum 600kg Weight*
Maximum 15m Gate Length
Speed: 18mtrs/min
Residential & Light Commercial
Cycles per day: 45
45watt Solar Panel
PWM Solar Charger
Battery Operated x 1
Advanced Tritek Board
Steel Internal Drive Gear
Adjustable Open & Close Speeds
2 Year Warranty

Automatic & Electric Gate Options

Looking for added convenience? All our sliding gates can be automated with high-quality auto gate kits or integrated with advanced electric gate systems. This allows for remote access, enhanced security, and easy entry without needing to leave your vehicle. We also offer solar-powered automation for off-grid properties, perfect for farms and rural driveways.

Electric
Powerpoint up to 50mtrs away

Ultima RT auto gate opener, slide gate, solar slide gate, automatic sliding gate, driveway sliding gate

Ultima RT25 Electric

$820

Residential Traffic
Maximum 500kg Weight*
Maximum 15m Gate Length
Speed: 25mtrs/min
Residential
Cycles per day: 45
Powerpoint up to 50mtrs away
External Transformer
Battery Operated x 1
Advanced Tritek Board
Steel Internal Drive Gear
Adjustable Open & Close Speeds
2 Year Warranty

Solar
Standalone System

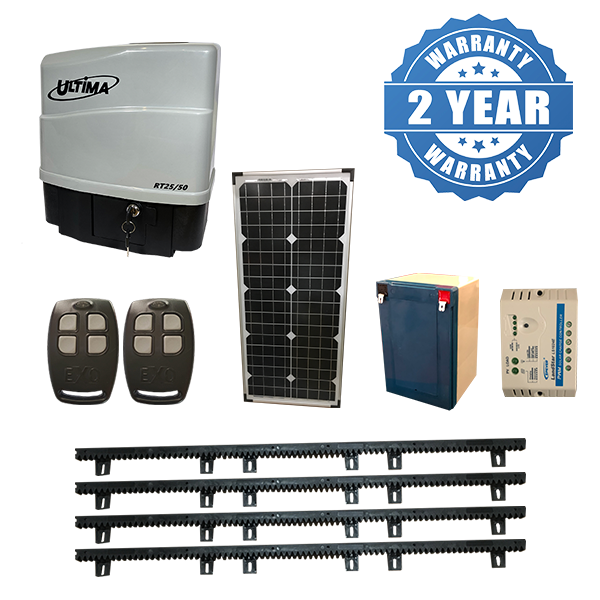

Ultima RT25 Solar

$980

Residential Traffic
Maximum 500kg Weight*
Maximum 15m Gate Length
Speed: 25mtrs/min
Residential
Cycles per day: 45
45watt Solar Panel
PWM Solar Charger
Battery Operated x 1
Advanced Tritek Board
Steel Internal Drive Gear
Adjustable Open & Close Speeds
2 Year Warranty

Electric
Powerpoint up to 30mtrs away

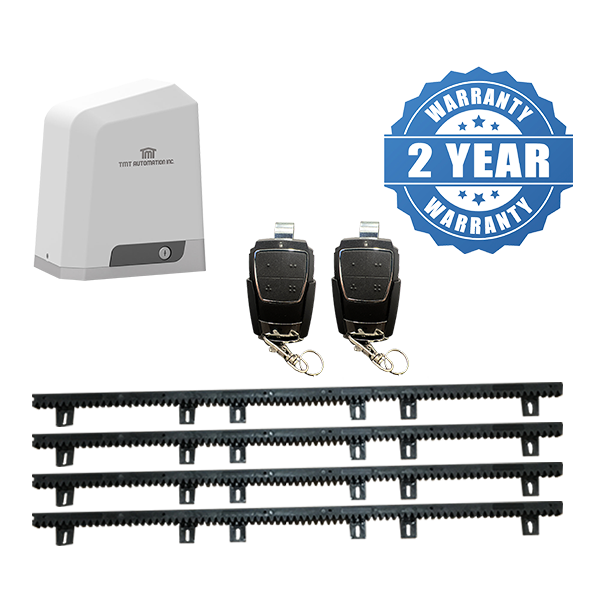

TMT 800LS

$770

Residential Traffic
Maximum 800kg Weight*
Maximum 8m Gate Length
Speed: 16mtrs/min
Residential
Cycles per day: 144
Powerpoint up to 30mtrs away
Transformer
Backup Battery Optional
Adjustable Settings
Adjustable Open & Close Speeds
2 Year Warranty

*All depending if the gate is on level ground or not

Upgrade Your Sliding Gates for Increased Security and Convenience

BMGi's electric sliding gates are the perfect solution to turn your manual sliding gate into an automatic gate. With our electric gates, you can enjoy increased security and convenience while adding value to your property. You no longer need to leave your vehicle to manually open or close the gate, making it a hassle-free experience.

Factors to Consider

It is important to consider the weight of your sliding gate as all gate openers have a maximum weight capacity, which is typically based on a gate on level ground. If your gate is on a slope, it will usually be heavier due to the incline. In addition, you should also consider the gradient or fall over the driveway and the power options available, such as solar gate openers or electric gates.

Selection of Sliding Gates

We offer sliding gates that are suitable for most gate applications. We also have a variety of accessories available, including visitor push buttons and keypads, to make it easier to allow visitors onto your property.

Power Options Available

Our sliding gates come with two power options to choose from: solar kit and DC electric kits. The solar option includes a 45-watt solar panel and a 12V 14Ah battery, while the DC electric option is low voltage.

15+ Year Experience

Phone Support

24hr Dispatch

Aussie Owned & Operated

We ship Australia wide

Brisbane
Sydney
Melbourne
Adelaide
Perth & Darwin
Tasmania

E8 swing Gate Opener

The E8 500 kit
is currently OUT OF STOCK
due to overwhelming demand on our swing kits – but here’s your chance to beat the rush!

⚠️ Limited offer while pre-order slots last. Don’t miss out – order now and be first in line!

💥 Stock due end of September 2025
💥 Order today online and get 10% OFF PLUS a FREE wireless keypad!
💥 Unbeatable value and priority shipping when new stock arrives.

✅ Lock in your discount
✅ Secure your place in the next shipment
✅ Enjoy a bonus wireless keypad – absolutely free!

Slimline Swing Gate Opener
Robust, Stainless Steel

BUY NOW

E8 500 Automatic Gate

One of the most user friendly swing gate opener motors on the market featuring auto closing, soft stopping, self learning and an integrated obstruction sensor. Available in both solar and DC electric power options.

3 x FREE Remotes (VALUED @ $120)

Need help making the right choice?
Check out our informative video explaining
everything you need to know about swing automation
and more details on our products to help you make the right decision.

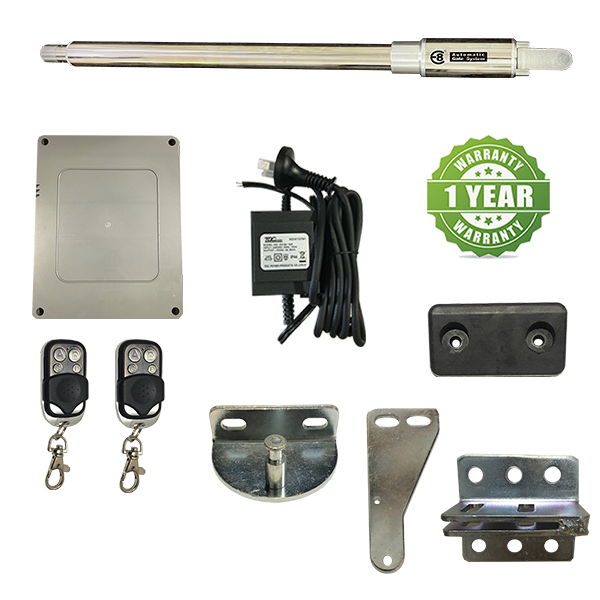

E8 Single solar and Electric automated gate opener kit

Single Swing Gate Opener

Solar - E8 500kit $875
Electric - E8 500kit $720
** Suits gates up to 4.2mtr

BUY NOW

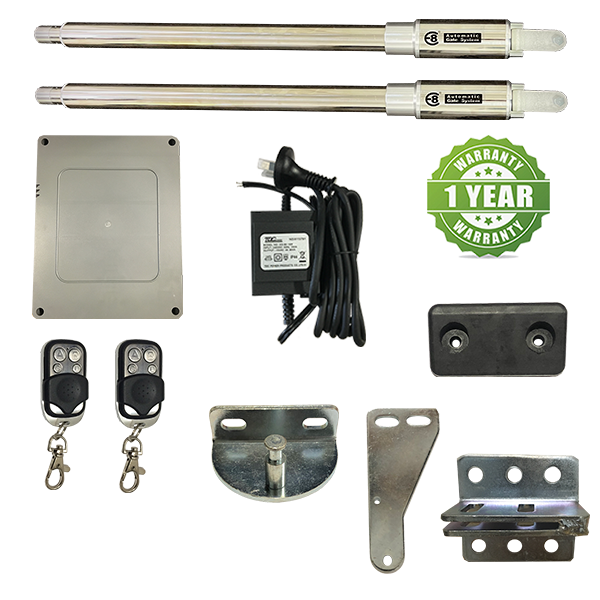

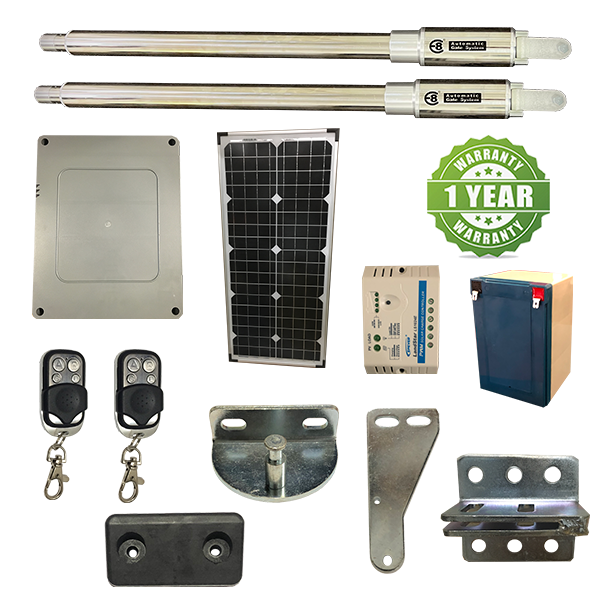

E8 Double solar and Electric automated gate opener kit

Double Swing Gate Opener

Solar - E8 500kit $1135
Electric - E8 500kit $980
** Suits gates up to 4.2mtrs EA

BUY NOW

Will this system work if my gate swings outwards?
YES, the E8 system can be setup for an inward swinging or outward swinging gate and still allow you to have the actuator arm located on the inside of the property.
If this setup is preferred make sure to order the 'E8 Push to Open Bracket'

The E8 500 swing gate opener is
suited for residential and farm gates

The E8 automatic swing gate opener is a great option when creating an elegant statement for your home but also providing an additional layer of safety and security for family and pets. Our swing gate opener is very versatile and will suit gates swinging inward or outward of the property on residential and farm gates.

Our automatic gates are easy to install and comes with full instructions and phone support if required. Adding this gate opener to your property will allow ease of opening and closing of your gate but with the extra security and peace of mind.

Knowing the dimensions and approximate weight of your gate, the sturdiness of the post and the material the gate is made out of, is necessary in order to choose the correct swing gate opener for your requirement.

High Quality 439 Stainless Steel actuator
Screw driven actuator
Auto Close function available up to 99 seconds
Inbuilt obstruction sensor feature
Actuator arm maintenance free
Soft stopping & self learning
Max gate length 4mtrs**
Solar or Electric

FEATURES

High Quality grade 439 stainless steel
Auto Close function up to 99 seconds
Max gate length 4mtrs
12v Solar or Electric 16v via transformer
Full DIY Instructions

Easy to add many accessories
Secure manual release by allen key
Inbuilt obstruction sensor feature
Soft stopping & self learning
Screw drive actuator

NO MORE EFFORT

A BREATH OF FRESH AIR!

The E8 swing gate opener will conveniently open and close your gate for you.

GREATER CONVENIENCE

ALL IN THE PRESS OF A BUTTON!

MORE STYLE

A SECURE HOME

Your property is less desirable to thieves when automating
your front driveway gate.

SPECIFICATIONS

Max Gate Length: 4mtrs**
Max Gate Weight: 250kgs**
Gear Type: Screw Drive
High Quality 439 Stainless Steel actuator

Max. Output Power: 80W per driver
12VDC (solar) 16VAC (electric)
Manual Release: Key

Fully featured DIY kits as Solar or Electric Available in Single and Double kits

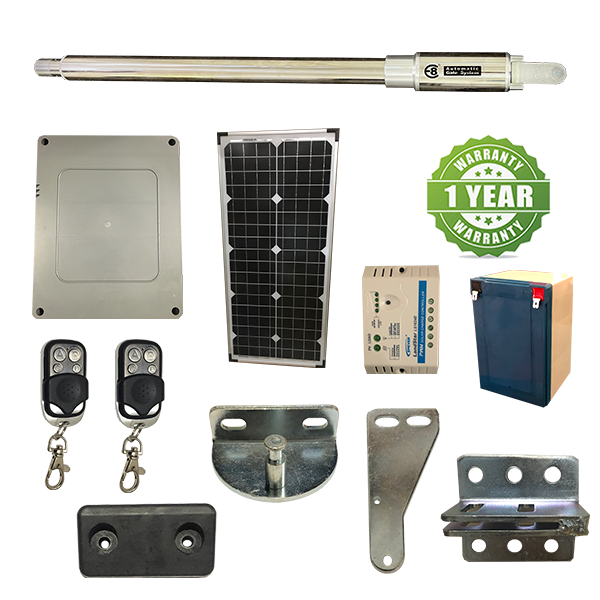

Solar Kit Inclusions

Actuator arm/s
Control box
Control board
2 remotes
Brackets and gate stop
2 x Release keys
Warning sign
45watt solar panel with mounting bracket & 10mtrs cable
Solar Regulator & 12v 14ah deep cycle battery

BUY NOW

Actuator
Control Box
Control Board
Remotes
Brackets
Gate Stop
Release Key
Caution Sign
14ah battery
Solar panel
Solar Regulator

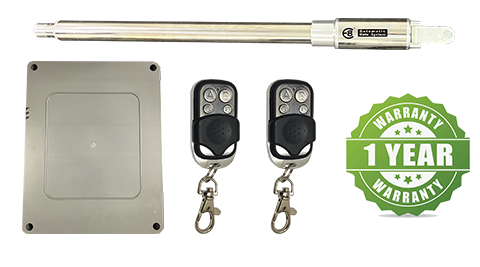

Electric Kit Inclusions

Actuator arm/s
Control box
Control board
2 remotes
Brackets and gate stop
2 x Release keys
Warning sign
Outdoor Transformer (low voltage cable not supplied)

BUY NOW

Actuator
Control Box
Control Board
Remotes & Receiver
Brackets
Gate Stop
Release Key
Caution Sign
Transformer

Optional Extras

E8 Round Gate Bracket $35 ea

This bracket is perfect for your rural farm gates! No drilling through your gate frame and easy adjustment during the installation.

Buy Now or View More
Round Post Bracket $35 ea

Is your gate swinging from a round post? You may be interested in the round post bracket option (standard flat bracket 100mm x 90mm).

Buy Now or View More
E8 Push to open bracket $25 ea

Suited for a push to open gate having the actuator arm on the inside of the property pushing the gate/s out to the road to open.

Buy Now or View More
4G GSM Gate Opener ~~$300~~ 20% off $240

Operate your gate from anywhere in world. Give friends and family access to your gate via the easy to use App.

Buy Now or View More
Keypad - Wireless $150 ea

Provides security to your property with a 4 digit pin code for visitors - 12/24volt - Inbuilt rechargeable Lithium

Buy Now or View More
Push Button - $35

Wires into the main control board and placed at the gate to allow visitors in and out of the property.

Buy Now or View More
Push Button (Wired) - $35

Wires into the main control board and placed at the gate to allow visitors in and out of the property. The key allows you to disable and lock the push button from being used.

Buy Now or View More
Long Range Receiver $90

Need distance on your gate opener? Maximum distance 400mtrs (dependant on area and line of sight)

Buy Now or View More
Electric Gate Lock $165

The electric gate lock attaches to your gate and adds extra security to your home and property, latching and locking your gate.

Buy Now or View More

Frequently Asked Questions

Product Specifications

Manuals and Downloads

Swing Gate Openers

Automatic Gates

Swing Gates - Electric Gates - Solar Gates

E8 500
Automatic Gates

Regular Duty Residential Opener

E8 single swing gate opener, swing gate, single swing gate, solar powered gates, farm gate opener, solar gate, auto gate,

Max Gate Length
4mtrs*

Max Gate Weight
1.5mtrs @ 250kgs

Motor Power
80W

Power Source
12V Solar or Electric

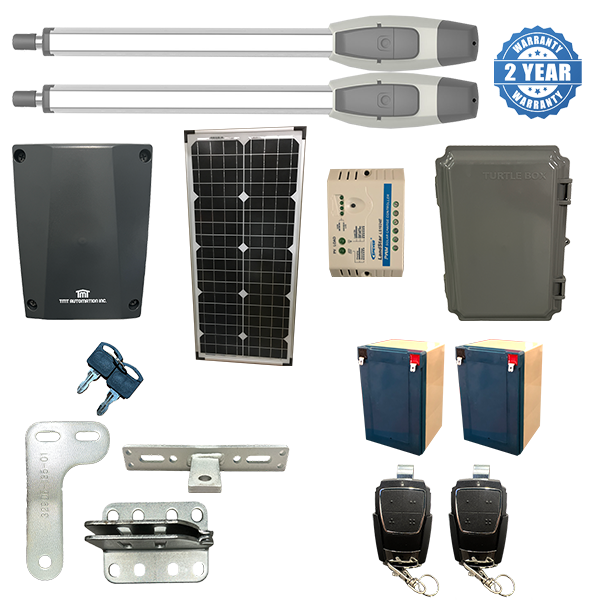

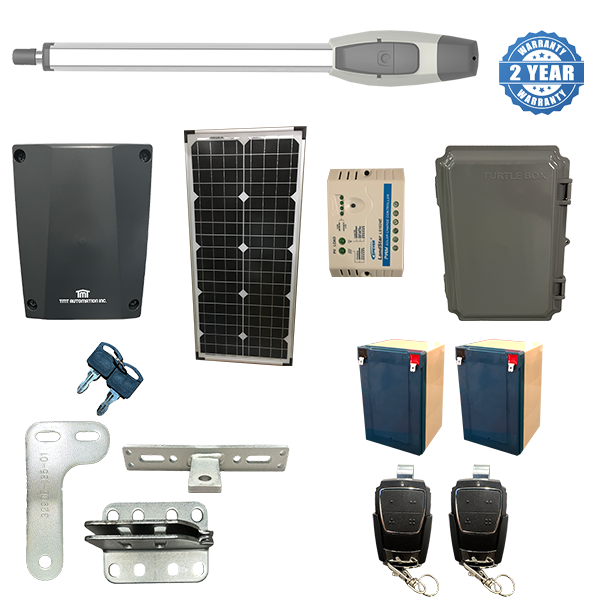

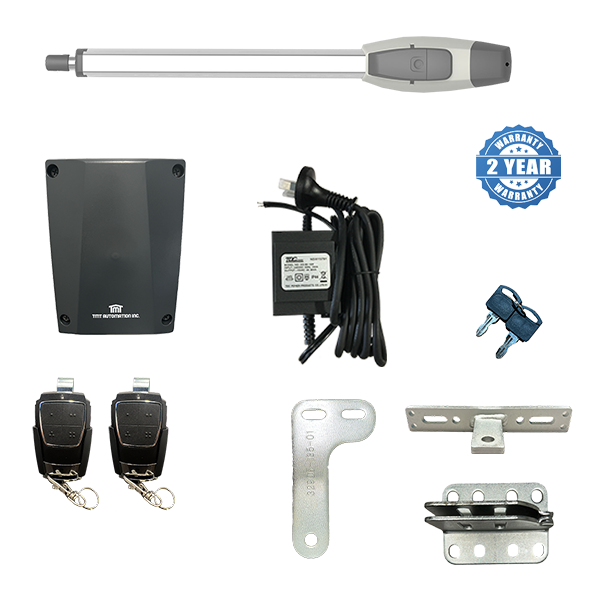

TMT 400LLS
Automatic Gates

Heavy Duty Residential Opener

TMT gate automation, automatic gate, swing gate opener, automatic gate opener, electric swing gate, solar swing gate, double swing gate, double gate opener,

Max Gate Length
5mtrs*

Max Gate Weight
3mtrs @ 450kgs

Motor Power
144W

Power Source
24V Solar or Electric

Swing Gate Automation Comparison - click here

Specifications	E8 Swing Gate Opener	TMT Swing Gate Opener
Stroke	500mm	540mm
Gate Weight	1.5mtrs/250kgs	3mtrs/450kg
Gate Length	4mtrs maximum*	5mtrs maximum*
Gate Style	Standard farm gate Max. 15% surface area enclosed	Standard farm gate Enclosed gates up to 3mtrs
Gear Type	Worm Drive	Worm Drive
Piston Speed	30mm/sec (AC Power only)	19.8mm/sec
Power Supply	240VAC/16VAC 3.75A Transformer	240VAC/24VAC 6A Transformer
Motor power Supply	Solar 12VDC - Electric 16VDC	Solar & Electric 24VDC
Motor Power	80W	144W
Manual Release	Allen key	Key
Solar Panel	12v 45watt 17.2V rated voltage 2.62A rated current	24v 40watt 36V rated Voltage 1.11A rated current
Transformer Rated Voltage	16VAC	24VAC
Transformer Rated Current	3.75A	6A
Ingress Protection Rating	IP34	IP44
Remote Quantity	120	80
Auto Close	Yes, up to 99 seconds	Yes, up to 300 seconds
Obstruction Feature	Yes	Yes Adjustable obstruction timing 0.1 sec - 1.0 sec
Limit Feature	No	Yes, Adjustable Limits
Over Current Limit Feature	Yes	Yes

* Provisions gate is level and plumb - hinges are ball bearing or nylon bush - all hardware in good working conditions

Do-It-Yourself

Our low voltage automatic gate openers are supplied with easy to follow and understandable instructions for the everyday handy person.

Reliability

All our swing auto gate openers are manufactured from high quality materials to provide you with a long lasting and reliable product.

Affordable

Our auto gate opener range offers the most affordable prices in Australia to ensure you can achieve the security and reliability at a low cost.

Security

Feeling secure is one of the most important aspects to feeling happy in your home and keeping those unwanted visitors out.

Single Swing Gate Kits - Electric or Solar

Electric
Powerpoint up to 50mtrs away

E8 500
Swing Gate Opener

$720

Residential Usage
12v System
Max. 250kg Weight*
Max. 4m Gate Length
Piston Speed: 30mm/sec (AC Power only)
Powerpoint up to 50mtrs away
External Transformer
Backup Battery Optional
Worm Drive
Adjustable Settings
1 Year Warranty

Solar
Standalone Sysetm

E8 500
Swing Gate Opener

$875

Residential Usage
12v System
Max. 250kg Weight*
Max. 4m Gate Length
45watt Solar Panel
PWM Solar Charger
1 x 12v 14ah battery
Worm Drive
Adjustable Settings
1 Year Warranty

Electric
Powerpoint up to 30mtrs away

TMT 400LLS
Swing Gate Opener

$1055

Residential Usage
24v System
Max. 450kg Weight*
Max. 5m Gate Length
Piston Speed: 19.8mm/sec
Powerpoint up to 30mtrs away
External Transformer
Backup Battery Optional
Worm Drive
Adjustable Settings
2 Year Warranty

Solar
Standalone Sysetm

TMT 400LLS
Swing Gate Opener

$1435

Residential Usage
24v System
Max. 450kg Weight*
Max. 5m Gate Length
40watt Solar Panel
PWM Solar Charger
2 x 12v 14ah battery
Worm Drive
Adjustable Settings
2 Year Warranty

Double Swing Gate Kits - Electric or Solar

Electric
Powerpoint up to 50mtrs away

E8 500
Swing Gate Opener

$980

Residential Usage
12v System
Max. 250kg Weight*
Max. 4m Gate Length
Piston Speed: 30mm/sec (AC Power only)
Powerpoint up to 50mtrs away
External Transformer
Backup Battery Optional
Worm Drive
Adjustable Settings
1 Year Warranty

Solar
Standalone Sysetm

E8 500
Swing Gate Opener

$1135

Residential Usage
12v System
Max. 250kg Weight*
Max. 4m Gate Length
45watt Solar Panel
PWM Solar Charger
1 x 12v 14ah battery
Worm Drive
Adjustable Settings
1 Year Warranty

Electric
Powerpoint up to 30mtrs away

TMT 400LLS
Swing Gate Opener

$1435

Residential Usage
24v System
Max. 450kg Weight*
Max. 5m Gate Length
Piston Speed: 19.8mm/sec
Powerpoint up to 30mtrs away
External Transformer
Backup Battery Optional
Worm Drive
Adjustable Settings
2 Year Warranty

Solar
Standalone Sysetm

TMT 400LLS
Swing Gate Opener

$1815

Residential Usage
24v System
Max. 450kg Weight*
Max. 5m Gate Length
40watt Solar Panel
PWM Solar Charger
2 x 12v 14ah battery
Worm Drive
Adjustable Settings
2 Year Warranty

*Max gate weight at starting gate length - E8 @ 1.5mtrs - TMT @ 3mtrs
Kg rating drops as gate length increases
Provisions gate is level and plumb - hinges are ball bearing or nylon bush - all hardware in good working conditions

15+ Year Experience

Phone Support

24hr Dispatch

Aussie Owned & Operated

We ship Australia wide

Brisbane
Sydney
Melbourne
Adelaide
Perth & Darwin
Tasmania

Uncategorised

sliding gates

Heavy-Duty Sliding Gates | Auto & Electric Gate Systems

Heavy-Duty Sliding Gates for Homes, Farms & Commercial Properties

Ultima AC/DC800 Electric

Ultima HT 18 Electric

Ultima HT 18 Solar

Automatic & Electric Gate Options

Ultima RT25 Electric

Ultima RT25 Solar

TMT 800LS

Upgrade Your Sliding Gates for Increased Security and Convenience

E8 swing Gate Opener

The E8 500 kit is currently OUT OF STOCKdue to overwhelming demand on our swing kits – but here’s your chance to beat the rush!

Slimline Swing Gate OpenerRobust, Stainless Steel

E8 500 Automatic Gate

3 x FREE Remotes (VALUED @ $120)

Single Swing Gate Opener

Solar - E8 500kit $875Electric - E8 500kit $720** Suits gates up to 4.2mtr

Double Swing Gate Opener

Solar - E8 500kit $1135Electric - E8 500kit $980** Suits gates up to 4.2mtrs EA

The E8 500 swing gate opener is suited for residential and farm gates

FEATURES

SPECIFICATIONS

Solar Kit Inclusions

Actuator

Control Box

Control Board

Remotes

Brackets

Gate Stop

Release Key

Caution Sign

14ah battery

Solar panel

Solar Regulator

Electric Kit Inclusions

Actuator

Control Box

Control Board

Remotes & Receiver

Brackets

Gate Stop

Release Key

Caution Sign

Transformer

E8 Round Gate Bracket $35 ea

Round Post Bracket $35 ea

E8 Push to open bracket $25 ea

4G GSM Gate Opener $300 20% off $240

Keypad - Wireless $150 ea

Push Button - $35

Push Button (Wired) - $35

Long Range Receiver $90

Electric Gate Lock $165

Swing Gate Openers

Automatic Gates

Swing Gates - Electric Gates - Solar Gates

Swing Gate Automation Comparison - click here

E8 500 Swing Gate Opener

E8 500 Swing Gate Opener

TMT 400LLS Swing Gate Opener

TMT 400LLS Swing Gate Opener

E8 500 Swing Gate Opener

E8 500 Swing Gate Opener

TMT 400LLS Swing Gate Opener

TMT 400LLS Swing Gate Opener

More Articles ...

The E8 500 kit
is currently OUT OF STOCK
due to overwhelming demand on our swing kits – but here’s your chance to beat the rush!

Slimline Swing Gate Opener
Robust, Stainless Steel

Solar - E8 500kit $875
Electric - E8 500kit $720
** Suits gates up to 4.2mtr

Solar - E8 500kit $1135
Electric - E8 500kit $980
** Suits gates up to 4.2mtrs EA

The E8 500 swing gate opener is
suited for residential and farm gates

E8 500
Swing Gate Opener

E8 500
Swing Gate Opener

TMT 400LLS
Swing Gate Opener

TMT 400LLS
Swing Gate Opener

E8 500
Swing Gate Opener

E8 500
Swing Gate Opener

TMT 400LLS
Swing Gate Opener

TMT 400LLS
Swing Gate Opener
