Safety Beams for Automatic Gates

Photocells, also known as photoelectric beams, consist of an invisible infrared light beam transmitted from a sending unit to a receiving unit. When an object blocks the beam, the system detects the presence of an obstacle. Photocells are frequently used in conjunction with automatic gates on either side of a driveway to prevent a gate from closing on a vehicle. This is particularly useful when the gate is set to automatically close after a predetermined time delay. Photocells are a vital safety feature, and they play a crucial role in preventing accidents and damage to property. They are reliable, cost-effective, and require little maintenance. Photocells are a simple yet effective way to ensure the safety of people and property.

When it comes to gate usage, photocells with a point-to-point infrared light beam transmitted between a transmitter and a receiver on either side of a gateway are typically the preferred option over reflector types. This is because reflector types tend to be less effective in rainy or sunny conditions. However, a newer type of reflector that utilizes an infrared laser has shown to be much more reliable. This laser-based reflector overcomes the issues associated with traditional reflector types, ensuring accurate detection of obstacles even in challenging weather conditions. It is important to choose the appropriate photocell for the application at hand, taking into consideration factors such as weather conditions, location, and reliability. A well-chosen photocell can provide reliable and efficient operation for gate systems, helping to prevent accidents and protect property.

When installing photocells, the most critical factor is ensuring that they are accurately facing each other. The transmitter's beam of light is narrow, and if it is not precisely aimed at the receiver, the system may not function correctly. Worse yet, it could work intermittently and stop functioning as soon as it rains, leaving the gate open and creating a safety hazard. Proper alignment of the photocell components is essential for reliable and efficient operation. Additionally, it is crucial to ensure that the installation location is free of obstacles that may block the light beam, such as vegetation or building structures. Taking the time to correctly align the photocell components and choose an appropriate installation location will help to ensure that the system functions correctly and prevents accidents, protecting both people and property.

Proper installation of photocells is crucial for the smooth and safe operation of gate systems. One of the critical factors that affect their performance is the height at which they are installed. If the height is too high, the photocell may not detect low-profile vehicles or empty trailers passing through, while if it is too low, it may detect obstacles such as the ground or rocks and cause the gate to malfunction.

To ensure optimal performance, it is recommended to install photocells at a height of around 600mm from the ground. This height is suitable for most vehicles, including cars, vans, utes, small trucks, and trailers. However, for gates shared by larger trucks, installing two sets of photocells at different heights is advisable. In addition to the first set installed at 600mm, a second set should be installed at 900mm to detect the presence of larger vehicles accurately.

By positioning the photocells at the correct height, gate systems can operate reliably and safely, ensuring the protection of both people and property. Proper installation of photocells is essential, and it is also important to ensure that the photocell components are securely mounted, correctly aligned, and free from obstructions that may interfere with their operation. Regular maintenance and testing of the photocell system will help to ensure that it remains functioning optimally over time.

When it comes to swing gates, it is essential to have at least two sets of closing photocells for proper coverage. For double swing gates, the distance between the inside and outside sets of photocells is shorter, making them better suited to this type of gate than single swing gates. When installing photocells on a 4m swing gate, it is crucial to ensure that the distance between the photocells does not exceed 4m. This is because if a car stops between the photocells, there is a risk that the gate may close on it. Therefore, it is best to position the photocells as close to the gate as possible to minimize this risk.

In addition to the two sets of closing photocells, it is also recommended to install a third set of opening photocells beyond the gate in the open position. This will prevent the gate from opening on a vehicle if it is parked in the path of the opening gate. If the opening photocell is broken, the gate will not open, thus preventing any potential accidents.

Proper installation and positioning of photocells are essential to ensure that swing gates function safely and reliably. It is also important to regularly inspect and maintain the photocell system to ensure that it continues to function optimally over time. By following these guidelines, swing gate systems can operate safely, protecting both people and property.

With swing gates, a pair of photocells should be placed just outside the gates (assuming they open inward) on opposite sides of the driveway and facing each other. A second pair should be placed inside the gates across the driveway but just outside the reach of the fully open gates.

When a vehicle approaches from the outside and the gates are closing, the outside safety beams are broken, which causes the gates to stop closing and reverse in order to open and avoid colliding with the car.

A vehicle that has passed through the outside safety beam then breaks the inside beam and prevents the gates from closing until it has passed through and the beam is restored. Then, after the appropriate time delay, the gates will close.

When vehicles approach gates that are in the process of closing from the inside, they will interrupt the inside safety beam and prevent the gates from closing. As a result, the gates will reverse and open completely, allowing the vehicle to pass through.

The time delay configured to maintain gates in an open state after a beam is restored is crucial, particularly when gates are crossed by pedestrians or slower-moving small vehicles. This is because there will be a moment when neither the inner nor outer beams are interrupted by the person or vehicle. In instances where long gates, such as a single 5-bar gate, are employed, a car can even be positioned in a way that does not obstruct either beam.

Automated sliding gates slide along the property boundary when opening. Ideally, safety beams should be installed along the full travel path of a sliding gate.

To prevent the risk of shearing and trapping injuries, it is crucial to ensure that safety photocells are installed on the inside of the gate. These photocells should be able to detect the full travel of the gate and stop it from moving if someone enters the danger area, such as when the gate slides against walls, posts or open railings. By installing safety photocells, the gate system can ensure the safety of individuals and prevent any accidents or injuries that may occur from gate movement. It is essential to take into account all potential hazards when installing a gate system and implement necessary safety measures to prevent any incidents.

By installing a pair of safety beams just outside the gate, anything that breaks their beam when the gate is closing will stop and open the gate.

The safety beams installed inside the gate stops and opens the closing gate when anything breaks their beam.

Safety beams are connected to the control unit of an automatic gate. There is normally an input dedicated to Safety beams. Also check your main gate manual to see if any settings need to be adjusted after adding the beams.

Wirelesss Safety Beams

$120/pr

Buy Now

Wired Safety Beams

$40/pr

Buy Now

Automatic sliding gates are becoming increasingly popular as a means of enhancing the security, convenience, and aesthetic appeal of residential and commercial properties. These gates offer a variety of benefits, including ease of use, improved property value, and enhanced security. With advanced features such as remote control access, intercom systems, and safety sensors, automatic sliding gates are an attractive option for property owners looking to upgrade their entranceways.

In this article, we will explore the different types of automatic sliding gates, how they work, and the advantages they offer over traditional gates. We will also delve into the installation process and the importance of regular maintenance and repairs to keep your gate in optimal condition. Whether you are a homeowner or a business owner, understanding the benefits and features of automatic sliding gates can help you make an informed decision about whether this option is right for your property. So, let's get started and discover the many advantages of automatic sliding gates.

There are several types of automatic sliding gates available on the market, each with its own unique features and advantages. The most common types of automatic sliding gates are single sliding gates, bi-parting sliding gates, telescopic sliding gates, and cantilever sliding gates.

Single sliding gates are the most straightforward type, consisting of a single gate panel that slides along a track. Bi-parting sliding gates, on the other hand, consist of two panels that slide in opposite directions to open and close the gate. Telescopic sliding gates are similar to bi-parting gates but have additional panels that slide to the side to allow for a larger opening.

Cantilever sliding gates do not require a track and instead use rollers to slide the gate along a cantilevered beam. This type of gate is ideal for uneven or sloping terrain. Automatic sliding gates can be made from a variety of materials, including steel, aluminum, and wood, allowing property owners to choose the type of gate that best suits their needs and preferences.

When choosing an automatic sliding gate, one of the most critical factors to consider is the material used in its construction. The material of the gate affects not only its appearance and durability but also its performance and maintenance requirements. It's essential to choose the right material to ensure that your automatic sliding gate functions efficiently and withstands the test of time.

One common material used in automatic sliding gates is steel. Steel gates are durable, secure, and require minimal maintenance. However, they can be heavy, making them more challenging to install and operate.

Aluminum is another popular material for automatic sliding gates. It is lightweight, rust-resistant, and can be customized to match any design. However, aluminum gates may not be as strong as steel, and they can be more prone to denting or bending.

Another material used in automatic sliding gates is wood. Wooden gates offer a natural, rustic look and can be custom-designed to fit any style. However, they require regular maintenance to prevent rotting or warping and may not be as durable as metal gates.

In summary, choosing the right material for your automatic sliding gate depends on your specific needs and preferences. Consider factors such as durability, maintenance requirements, and design aesthetics when making your decision.

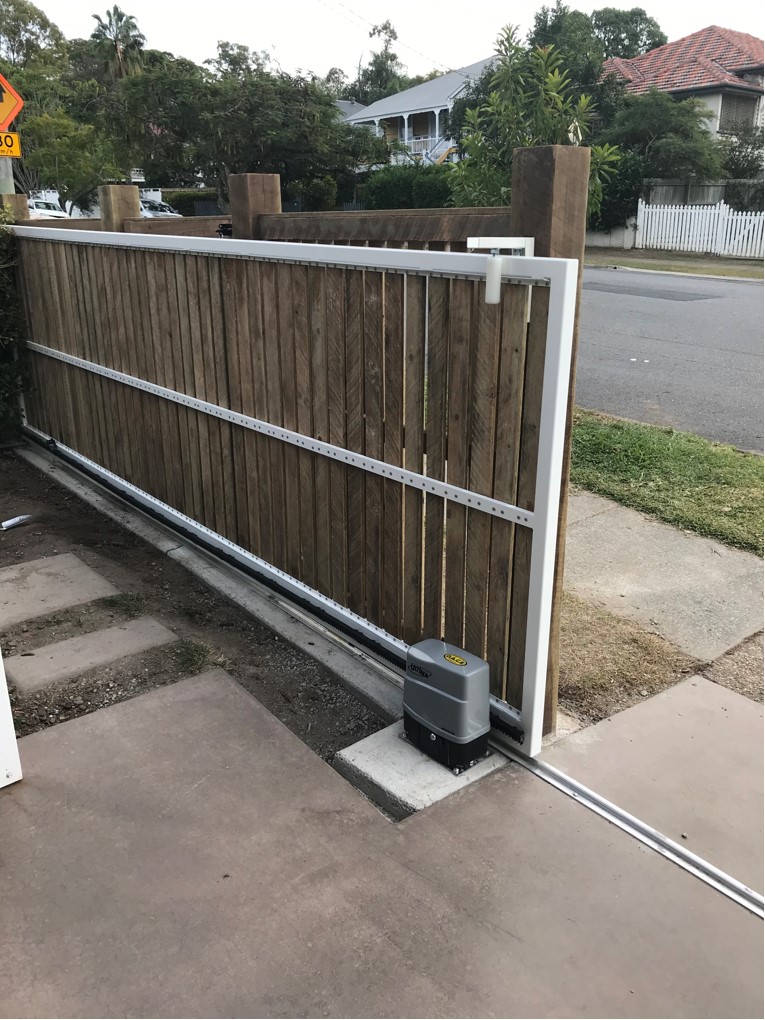

Automatic sliding gates operate through a motorized system that drives the gate panel along a track. The system includes several components, including the gate motor, gearbox, control board, and safety sensors.

The gate motor is the heart of the system and is responsible for driving the gate panel along the track. It is powered by electricity and can be programmed to open and close the gate at specific times. The gearbox is connected to the motor and provides the necessary torque to move the gate panel.

The control board is the brain of the system and manages the operation of the motor and safety features. It receives signals from sensors located on the gate and in the surrounding area and activates the motor accordingly.

Safety sensors are an essential component of automatic sliding gates, as they ensure that the gate stops and reverses if it encounters an obstacle. These sensors can be infrared or magnetic and are designed to detect any obstruction in the gate's path.

Automatic sliding gates offer a wide range of advantages over traditional gates, making them a popular choice for both residential and commercial properties. One of the most significant advantages of automatic sliding gates is the convenience they offer. With the push of a button or a remote control, property owners can easily open and close their gates without leaving the comfort of their vehicle.

Another advantage of automatic sliding gates is the enhanced security they provide. The motorized system and safety features, such as sensors and intercom systems, ensure that only authorized individuals can access the property. This added layer of security can deter potential intruders and protect the property from theft and vandalism.

In addition to convenience and security, automatic sliding gates can also increase property value. These gates provide an attractive and modern entryway that can add curb appeal and sophistication to any property. Automatic sliding gates are also energy-efficient, as they close automatically after use, reducing energy consumption and costs.

Finally, automatic sliding gates are durable and long-lasting, requiring minimal maintenance and repairs. Overall, the benefits and advantages of automatic sliding gates make them an attractive option for property owners looking to enhance their security and convenience while adding value to their property.

When choosing an automatic sliding gate for your property, it's essential to consider several factors to ensure you choose the right one. Here are some tips to help you make an informed decision:

1. Determine the purpose of the gate: Consider why you need an automatic sliding gate and what you want to achieve with it. Do you need it for security, privacy, or convenience?
2. Consider the size of the gate: The size of the gate should be appropriate for your property. The gate's width and height should be compatible with the size of the driveway or entrance and the type of vehicle you have.
3. Choose the right material: Select a material that is durable, secure, and suits the aesthetics of your property. Steel, aluminum, and wood are popular materials used in automatic sliding gates.
4. Consider the location: The location of the gate affects its performance and maintenance requirements. If it's near a busy road or exposed to the elements, choose a material that can withstand harsh weather conditions and minimize noise pollution.
5. Check the safety features: Ensure that the gate has safety features such as sensors, alarms, and emergency stop buttons to prevent accidents and protect your property.

By considering these factors, you can choose the right automatic sliding gate that meets your needs and fits your property's aesthetics.

The installation process for automatic sliding gates can vary depending on the type of gate and the property's layout. The first step in installing an automatic sliding gate is to determine the gate's location and the necessary measurements. This includes identifying the required gate width, height, and clearance on either side of the gate.

Once the measurements have been taken, the gate and motor system can be installed. The gate panel is mounted on rollers that slide along a track, which is secured to the ground with concrete anchors. The motor system is then connected to the gate panel and the control board.

After the installation is complete, the system must be tested to ensure it operates smoothly and safely. This includes testing the safety sensors, intercom system, and remote control access.

It is essential to hire a professional contractor for the installation of an automatic sliding gate to ensure the system is installed correctly and safely. A professional installer will also be able to provide guidance on the best type of gate and motor system for the property and ensure that the installation meets all local safety codes and regulations.

Proper maintenance and repair of automatic sliding gates are crucial to ensuring the gate's optimal performance and longevity. Regular maintenance can prevent breakdowns and prolong the life of the gate and motor system. Maintenance tasks include lubricating the gate track and rollers, checking the tension of the gate chain or belt, and cleaning the gate panel and surrounding area.

In addition to regular maintenance, it is important to address any issues or repairs promptly. Common problems with automatic sliding gates include damaged gate panels, malfunctioning motor systems, and sensor issues. It is essential to hire a professional technician to diagnose and repair these issues to ensure the system remains safe and operates correctly.

To prevent future repairs and ensure optimal performance, it is recommended to schedule regular maintenance with a professional technician. They can inspect the system, identify potential issues, and provide necessary repairs and maintenance. Overall, proper maintenance and timely repairs are essential to maintaining the safety and reliability of an automatic sliding gate.

In addition to the security and convenience benefits of using automatic sliding gates, there are also environmental benefits to consider. These gates are an eco-friendly solution for property owners who want to reduce their carbon footprint and make their homes or businesses more sustainable.

One of the most significant environmental benefits of automatic sliding gates is that they require less energy to operate than traditional gates. This is because the motorized system is designed to be energy-efficient, which reduces the amount of electricity needed to open and close the gate.

Furthermore, automatic sliding gates can help to reduce air pollution by minimizing the need for vehicles to idle outside the gate while waiting for it to open. This, in turn, can help to reduce greenhouse gas emissions and improve air quality in the surrounding area.

Finally, automatic sliding gates are often made from sustainable materials such as steel or aluminum, which can be recycled at the end of their useful life. This reduces the amount of waste going to landfills and helps to conserve natural resources.

Overall, choosing an automatic sliding gate for your property can be a smart choice for the environment as well as for security and convenience.

Automatic sliding gates provide numerous benefits, including convenience, enhanced security, and increased property value. These gates operate through a motorized system that includes a gate motor, gearbox, control board, and safety sensors.

Installation of an automatic sliding gate requires precise measurements, and it is essential to hire a professional contractor to ensure the gate and motor system are installed correctly and meet all local safety codes and regulations.

Proper maintenance and timely repairs are essential to ensure the gate operates optimally and remains safe. Regular maintenance tasks include lubricating the gate track and rollers, checking the tension of the gate chain or belt, and cleaning the gate panel and surrounding area. It is recommended to schedule regular maintenance with a professional technician to identify potential issues and provide necessary repairs.

Overall, automatic sliding gates offer a secure and convenient solution for entryways while enhancing property value and energy efficiency. By investing in an automatic sliding gate and maintaining it properly, property owners can ensure long-lasting and reliable security for their property.
