Dace Ultima Sliding Gate Motor Range
🇦🇺 Australian Owned & Operated - DIY Installation - 2 Year Warranty - Ships Nationally
BMGI · DACE ULTIMA SERIES - CLASS LEADING SPEED
Automatic Sliding Gate Openers
Four models to suit every gate weight, traffic level, and power setup — all with steel internal gears and a 2year warranty.
-
DACE Ultima RT25 - Electric or Solar
-
DACE Ultima HT18 - Electric or Solar
-
DACE Ultima AC/DC 500 - Electric
-
DACE Ultima AC/DC 800 - Electric
✔ DIY kit |
✔ Battery Backup |
✔Solar Available |
✔ Steel Internal Gears |
✔ No electrician needed
CHOOSE YOUR MODEL
Find the right gate opener for your property
REGULAR TRAFFIC
DACE Ultima RT25
Fast, residential gates up to 500kg
Max. Gate: 500kgs
Max. Length: 15m
Speed: 25m/min
⚡ Electric Kit — RT25 $820
☀️ Solar Kit — RT25 $980
☀️ Solar Kit — RT25 $980
Kit Inclusions
- Motor with base plate
- 4m nylon racking
- 2 × remotes
- 2 × release keys
- 12V 7Ah battery
- IP67 outdoor transformer (low voltage cable not supplied)
- 12V 14Ah battery
- Standalone PWM solar charger
- 45W mono-crystalline solar panel
- Mounting bracket + 10m pre-wired cable
HIGH TRAFFIC
DACE Ultima HT18
Residential & light commercial gates up to 600kg
Max. Gate: 600kgs
Max. Length: 15m
Speed: 18m/min
⚡ Electric Kit — HT18 $820
☀️ Solar Kit — HT18 $980
☀️ Solar Kit — HT18 $980
Kit Inclusions
- Motor with base plate
- 4m nylon racking
- 2 × remotes
- 2 × release keys
- 12V 7Ah battery
- IP67 outdoor transformer (low voltage cable not supplied)
- 12V 14Ah battery
- Standalone PWM solar charger
- 45W mono-crystalline solar panel
- Mounting bracket + 10m pre-wired cable
HIGH TRAFFIC
DACE Ultima ACDC 500
Residential & light commercial gates up to 800kg
Max. Gate: 500kgs
Max. Length: 20m
Speed: 40m/min
⚡ ACDC 500 $990
Kit Inclusions
- Motor with base plate
- 4m nylon racking
- 2 × remotes
- 2 × release keys
- Inbuilt high current toroidal transformer
HIGH TRAFFIC
DACE Ultima ACDC 800
Residential & light commercial gates up to 800kg
Max. Gate: 800kgs
Max. Length: 20m
Speed: 28m/min
⚡ ACDC 800 $990

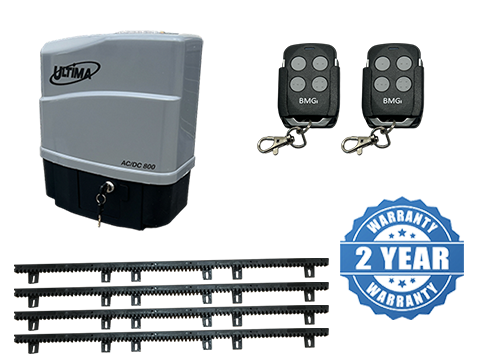

Kit Inclusions
- Motor with base plate
- 4m nylon racking
- 2 × remotes
- 2 × release keys
- Inbuilt high current toroidal transformer
SIDE BY SIDE
Full Specifications Comparison - click here to view
| Specifications | DACE Ultima RT25 |
DACE Ultima HT18 |
DACE Ultima AC/DC 500 |
DACE Ultima AC/DC 800 |
|---|---|---|---|---|
| Max Gate Weight | 500kgs | 600kgs | 500kgs | 800kgs |
| Max Gate Length | 15m | 15m | 20m | 20m |
| Max Running Speed | 25m/min | 18m/min | 40m/min | 28m/min |
| Cycles Per Day | 45 | 45 | 1500 | 1500 |
| Max Startup Force | 22 kgf | 28 kgf | 22 kgf | 32 kgf |
| Max Running Force | 15 kgf | 18 kgf | 15 kgf | 22 kgf |
| Motor Power | 120watts | 120watts | 120watts | 120watts |
| Motor RPM | 4500rpm | 3100rpm | 4500rpm | 3100rpm |
| External Pinion Gear | Steel | Steel | Steel | Steel |
| Internal Drive Gear | Steel | Steel | Steel | Steel |
| Onboard Receiver | 1024 | 1024 | 1024 | 1024 |
| Battery Operated | ✔ Included (12v) | ✔ Included (12v) | Optional (12v) | Optional (12v) |
| Solar Kit Available | ✔ Yes | ✔ Yes | ✘ No | ✘ No |
| Auto Close | 0-30min | 0-30min | 0-30min | 0-30min |
| Pedestrian Mode | Yes | Yes | Yes | Yes |
| Party Mode | Yes | Yes | Yes | Yes |
| Manual Release | Yes | Yes | Yes | Yes |
| Collision Sensing | Close & Open cycle | Close & Open cycle | Close & Open cycle | Close & Open cycle |
| Transformer Supply | 220–240V AC | 220–240V AC | 220–240V AC (inbuilt toroidal) | 220–240V AC (inbuilt toroidal) |
| USB Software Upgrades | ✔ Yes | ✔ Yes | ✔ Yes | ✔ Yes |
| Self Diagnostics Screen | ✔ Yes | ✔ Yes | ✔ Yes | ✔ Yes |
* Please note that the operation speed is dependent on the gates weight and pull force
ALL FOUR MODELS INCLUDE
Shared features across the Ultima range
⚙️
Steel Internal Gears
Steel Internal Gears
Both the internal drive gear and external pinion are steel for longer lifespan and better shock tolerance when obstructions are detected.
🖥️
Large Graphics Display
Large Graphics Display
On-board help screens and joystick navigation make setup and troubleshooting straightforward without needing a laptop or app.
🔊
Voice Prompts
Voice Prompts
Audio guidance walks you through installation step by step — ideal for first-time DIY installers.
📡
1024 Remote Capacity
1024 Remote Capacity
Program up to 1024 code-hopping remotes across 16 channels. Time manager controls up to 840 events.
💾
USB Software Updates
USB Software Updates
Firmware is updated via USB, and BMGi ships units with the latest software already loaded before despatch.
🛡️
Collision Sensing
Collision Sensing
Adjustable force sensing in both open and close directions — gate reverses automatically if an obstacle is detected.
😴
Sleep Modes
Sleep Modes
Three sleep levels (light, medium, deep) keep energy consumption low during quiet periods.
🔧
8 Inputs / 5 Outputs
8 Inputs / 5 Outputs
Full integration support for keypads, intercoms, safety beams, and other access control accessories.
ADD TO ANY KIT
Optional Accessories
GSM Gate Opener $240
Open your gate from your phone
Wireless Keypad
$150
$150
PIN access — no remote needed.
Visitor Push Button
$35
$35
Visitor Push Button - Entry & Exit

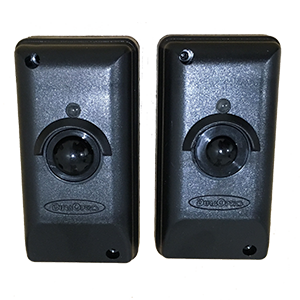

Semi Wireless Beams
$120
$120
Prevent the gate from closing on a vehicle.
COMMON QUESTIONS
Frequently asked questions
Can these motors run during a power outage?
Yes. The RT25 and HT18 run off an included 12V battery (charged by transformer or solar). The AC/DC 800 supports optional battery backup — add a 12V 7Ah battery.
Yes. The RT25 and HT18 run off an included 12V battery (charged by transformer or solar). The AC/DC 800 supports optional battery backup — add a 12V 7Ah battery.
What's the maximum gate size each model handles?
The RT25 and HT18 both handle gates up to 15m. The AC/DC 800 and 500 handle gates up to 20m in length.
The RT25 and HT18 both handle gates up to 15m. The AC/DC 800 and 500 handle gates up to 20m in length.
Can I install these myself?
Yes — all four are supplied as DIY kits. The 12V low-voltage system means no electrician is required. Low-voltage cable can be stapled along the fence or buried just 100mm underground.
Yes — all four are supplied as DIY kits. The 12V low-voltage system means no electrician is required. Low-voltage cable can be stapled along the fence or buried just 100mm underground.
Are these motors weather resistant?
Yes. All four models are designed for outdoor Australian conditions. The transformer included in the electric kits for the RT and HT is rated IP67.
Yes. All four models are designed for outdoor Australian conditions. The transformer included in the electric kits for the RT and HT is rated IP67.
Is there an obstruction safety feature?
Yes — all models include adjustable collision sensing in both the open and close directions.
Yes — all models include adjustable collision sensing in both the open and close directions.
Can I set the gate to auto-close?
Yes. All models have configurable auto-close times from 0 to 30 minutes.
Yes. All models have configurable auto-close times from 0 to 30 minutes.
What warranty is included?
All four models include a 2-year back-to-base warranty covering the motor, gearbox, and control board.
All four models include a 2-year back-to-base warranty covering the motor, gearbox, and control board.
How do I measure if my gate is suitable?
Measure startup force and running force with a luggage or fishing scale. Also calculate effective gate weight if your driveway has a gradient (formula: 40 × gradient + actual gate weight).
Measure startup force and running force with a luggage or fishing scale. Also calculate effective gate weight if your driveway has a gradient (formula: 40 × gradient + actual gate weight).
What happens if I have questions when I'm installing?
If you have questions throughout the installation, you can call the office Monday - Friday to speak with our trained staff PH: 07 3205 3002
If you have questions throughout the installation, you can call the office Monday - Friday to speak with our trained staff PH: 07 3205 3002
