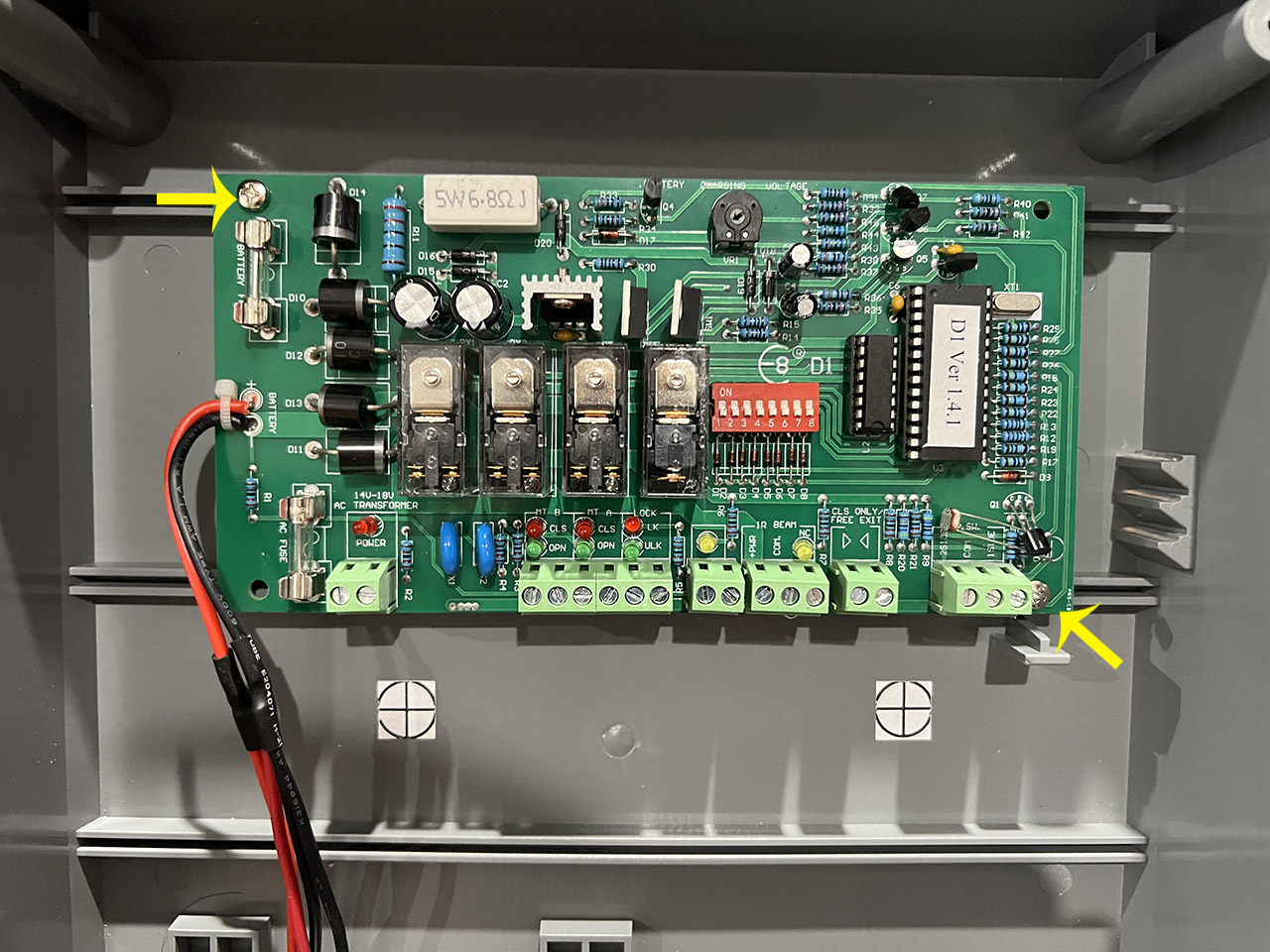

Remove the D1 control board from the main control box by removing the two screws as shown.
Step 2

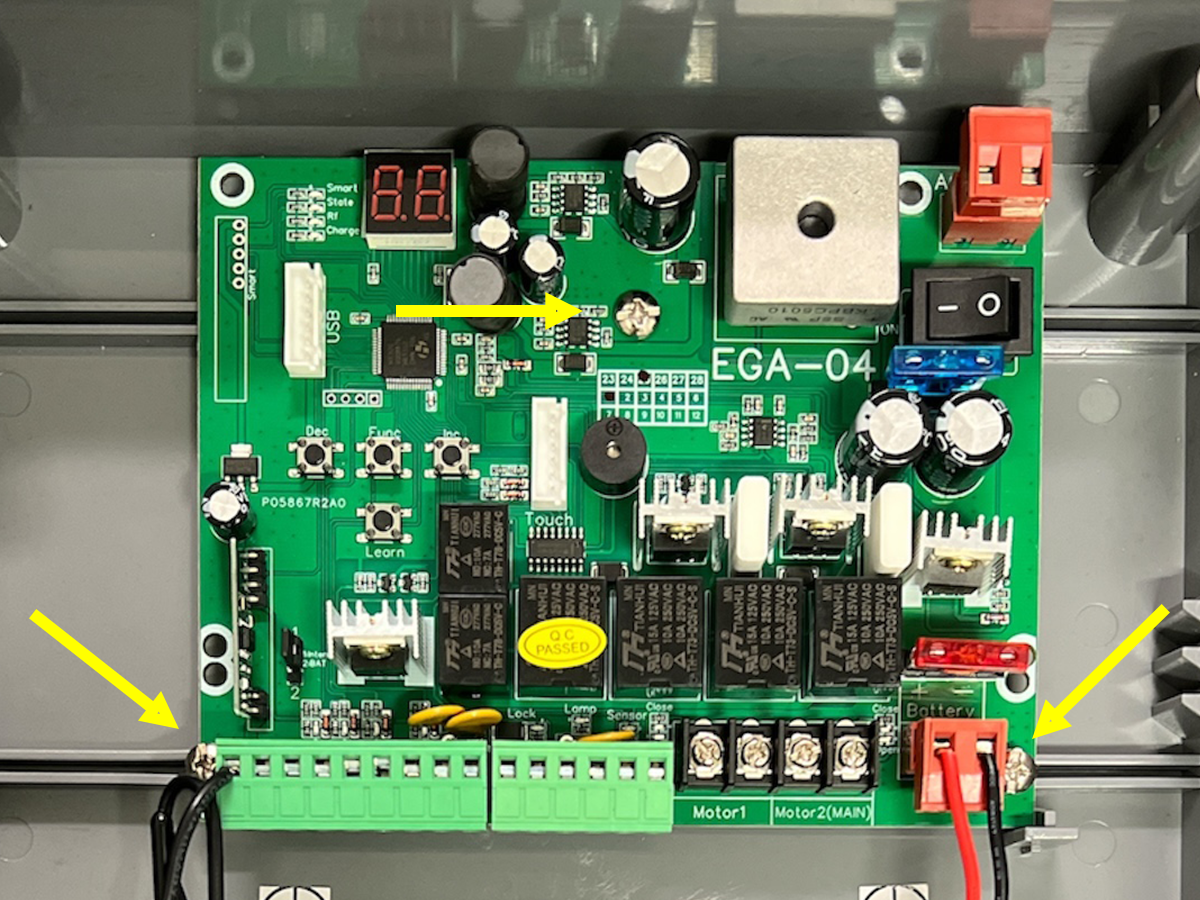

You are provided with screw 3 holes to secure the EGA control board to the main control box (indicated by the yellow arrows). If you only have 2 screws from your D1 control board, use 1 screw to secure the top section of the control board and the other screw in either of the bottom 2 screw holes.
Step 3

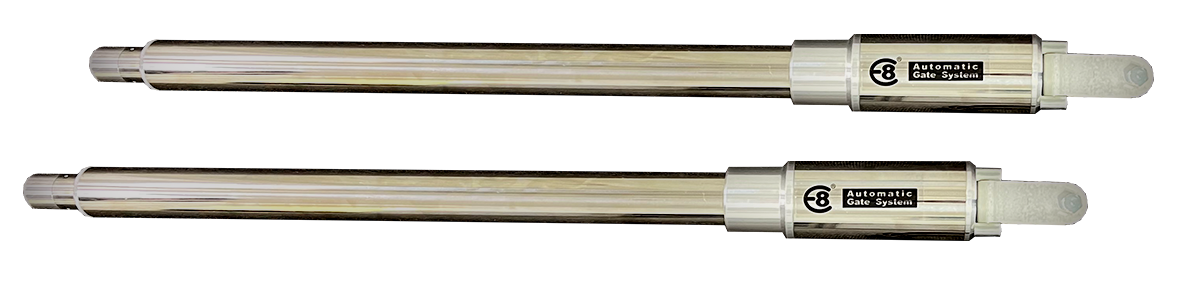

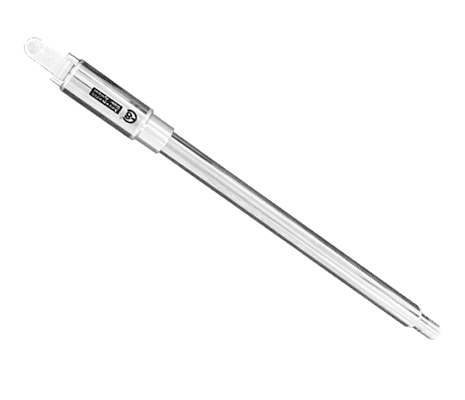

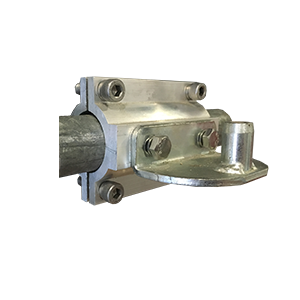

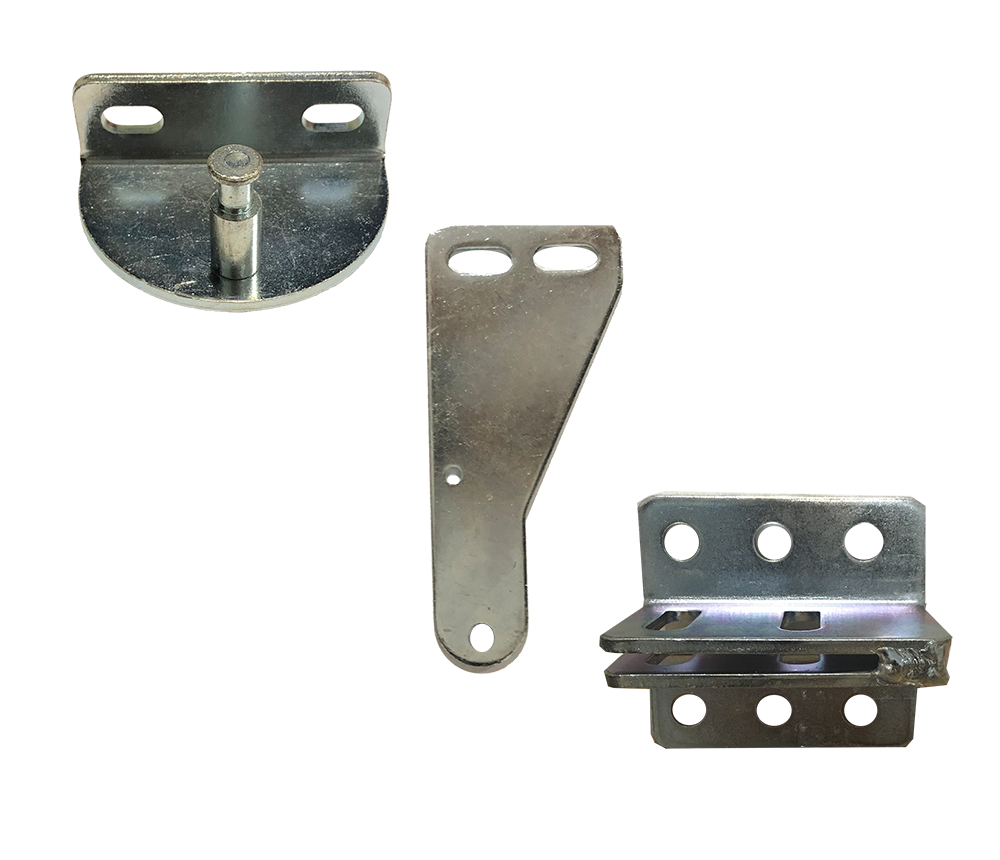

Wire up your actuator arm or arms following the correct sequence as shown below

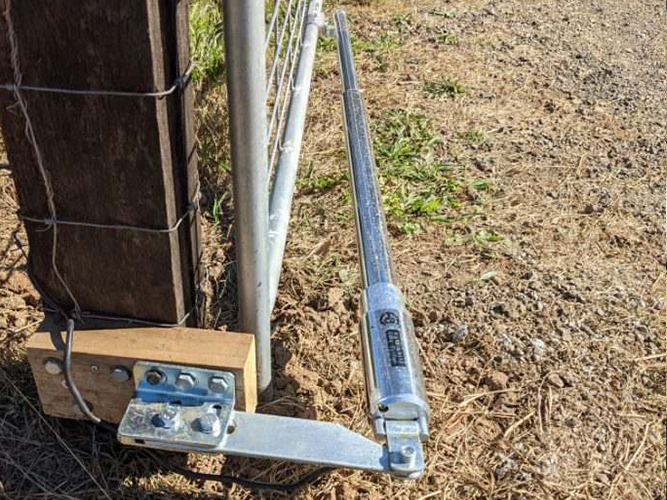

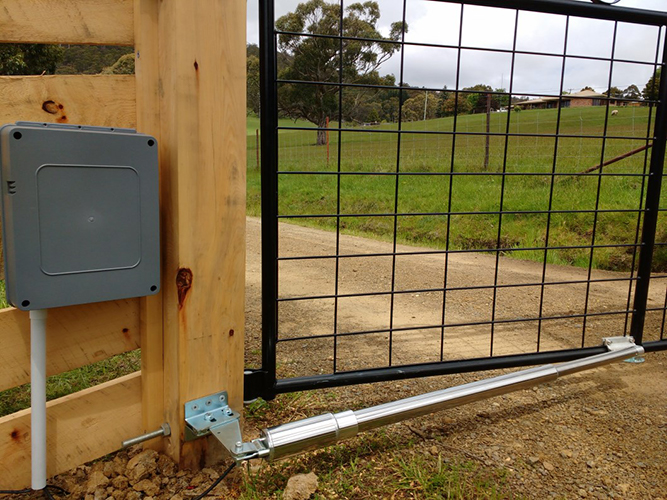

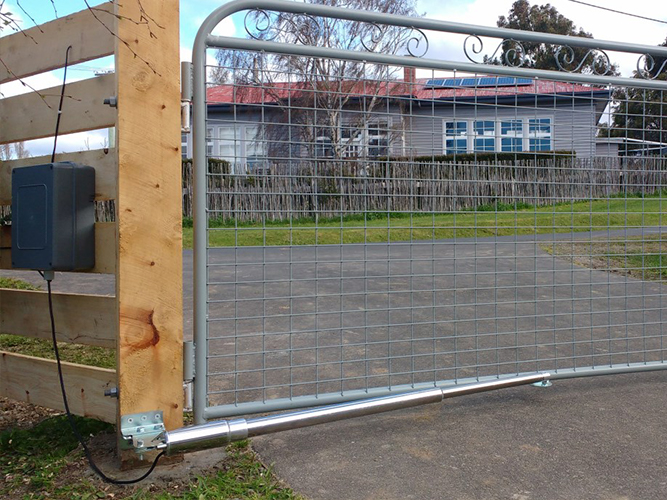

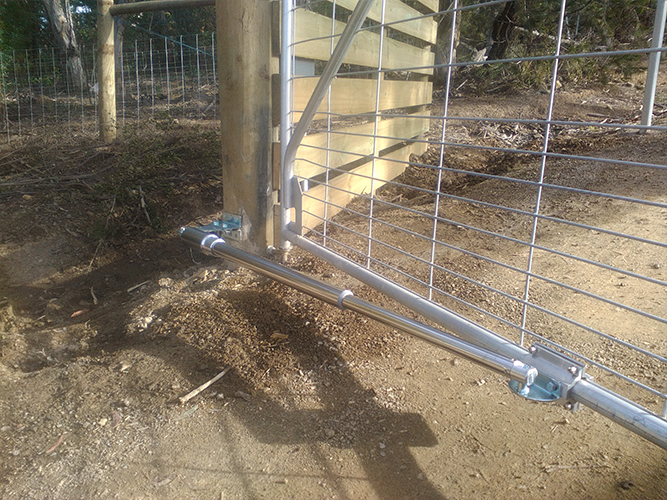

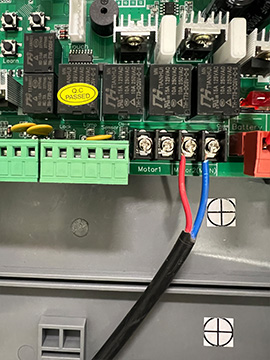

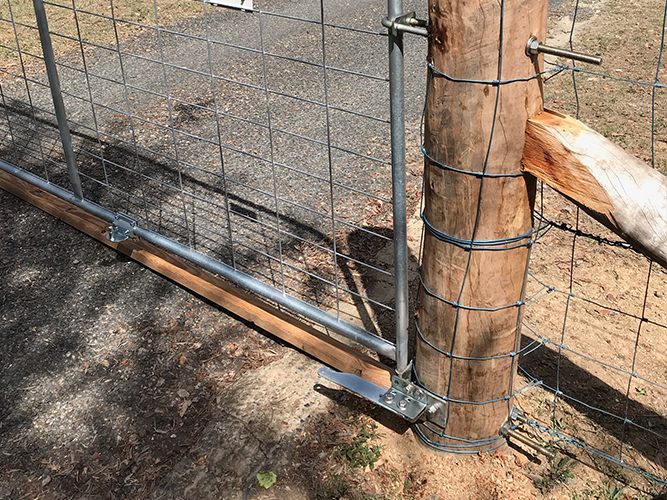

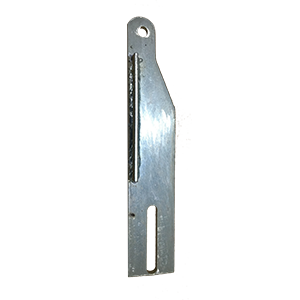

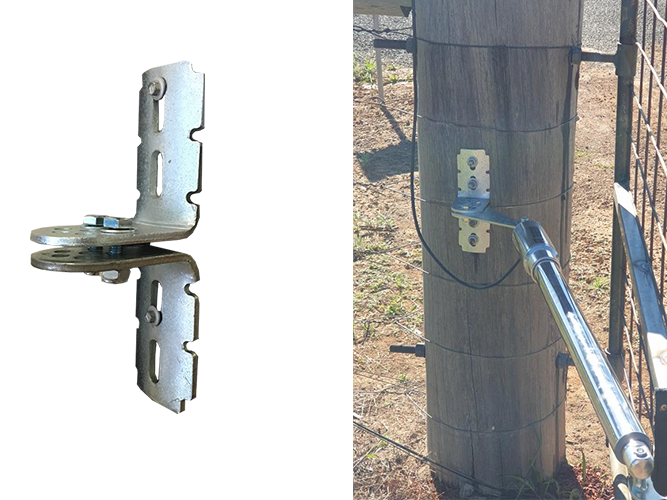

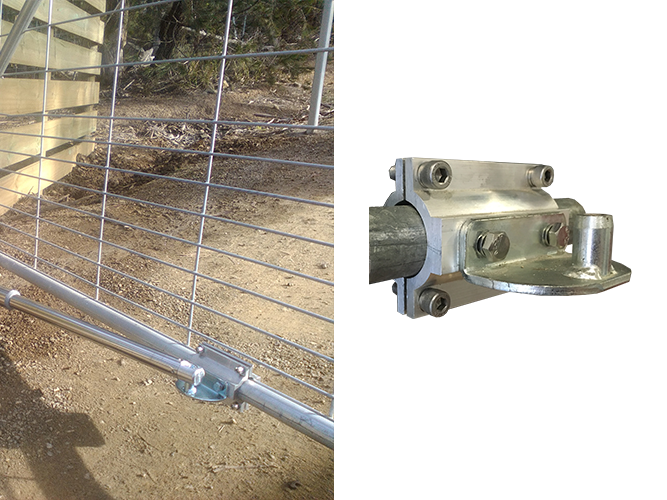

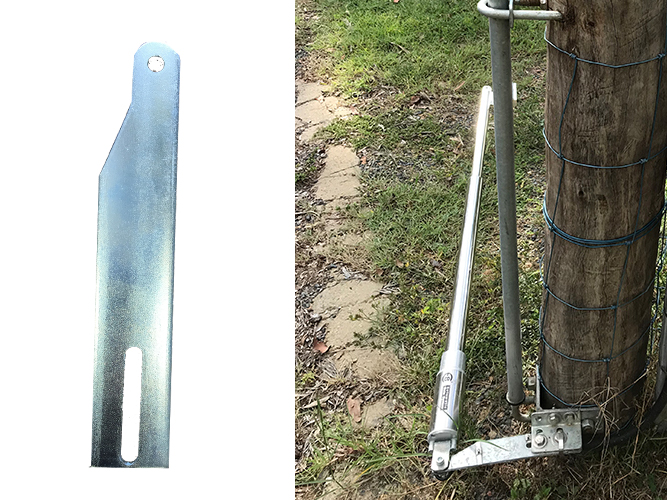

Single arm setup - arm on the inside of the property, pushing the gate outwards to open.

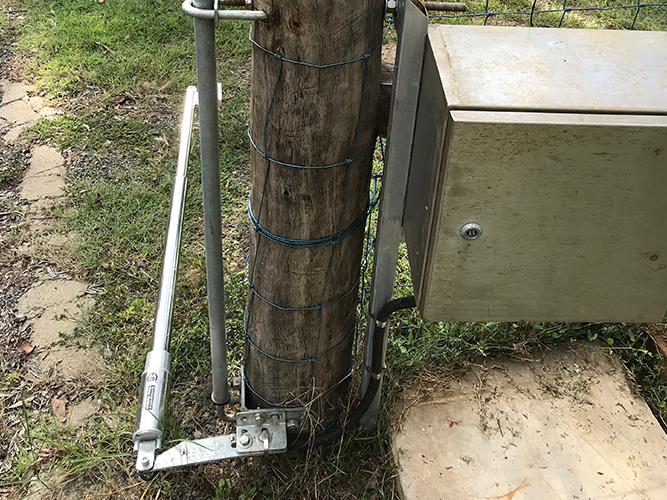

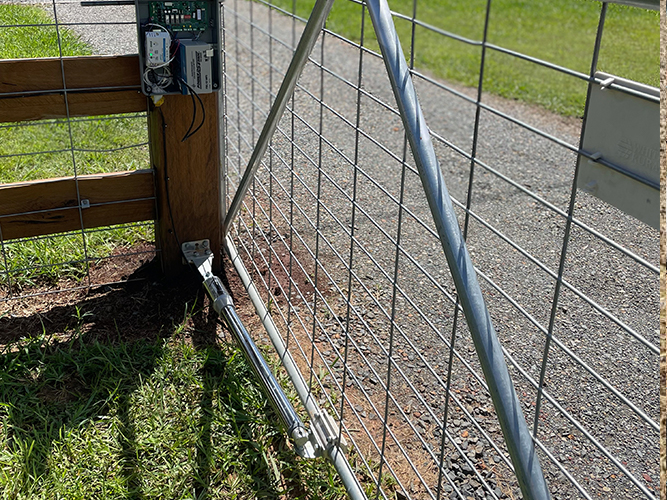

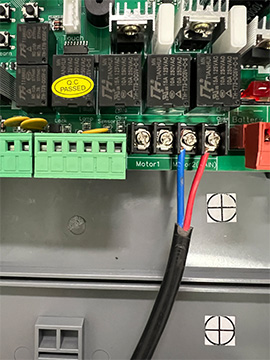

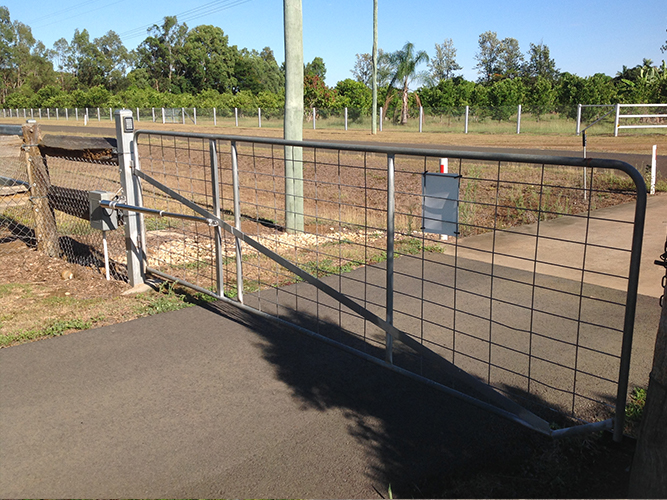

Single arm setup - arm on the inside of the property, pulling the gate in to the property to open.

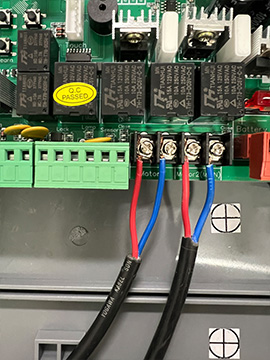

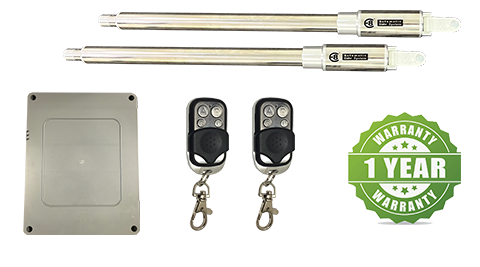

Double arm setup - arms on the inside of the property, pushing the gates outwards to open.
Double arm setup - arms on the inside of the property, pulling the gates in to the property to open.
Step 4 - Accessory Wiring
Select your accessory below to view the specific wiring instructions for each item.
Visitor Push button
Visitor Key Push button
Keypad - wired

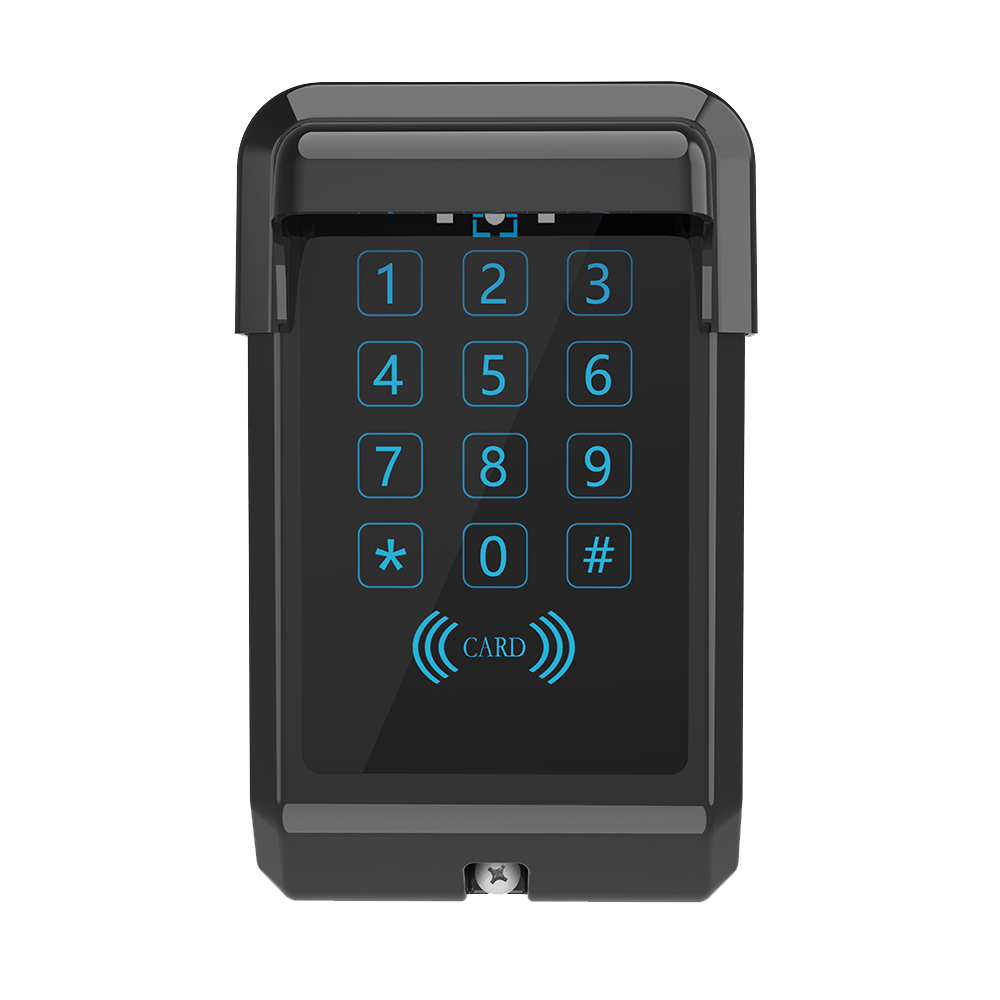

Keypad or Push Button - wireless
7 Channel Long Range Receiver
Long Range Receiver

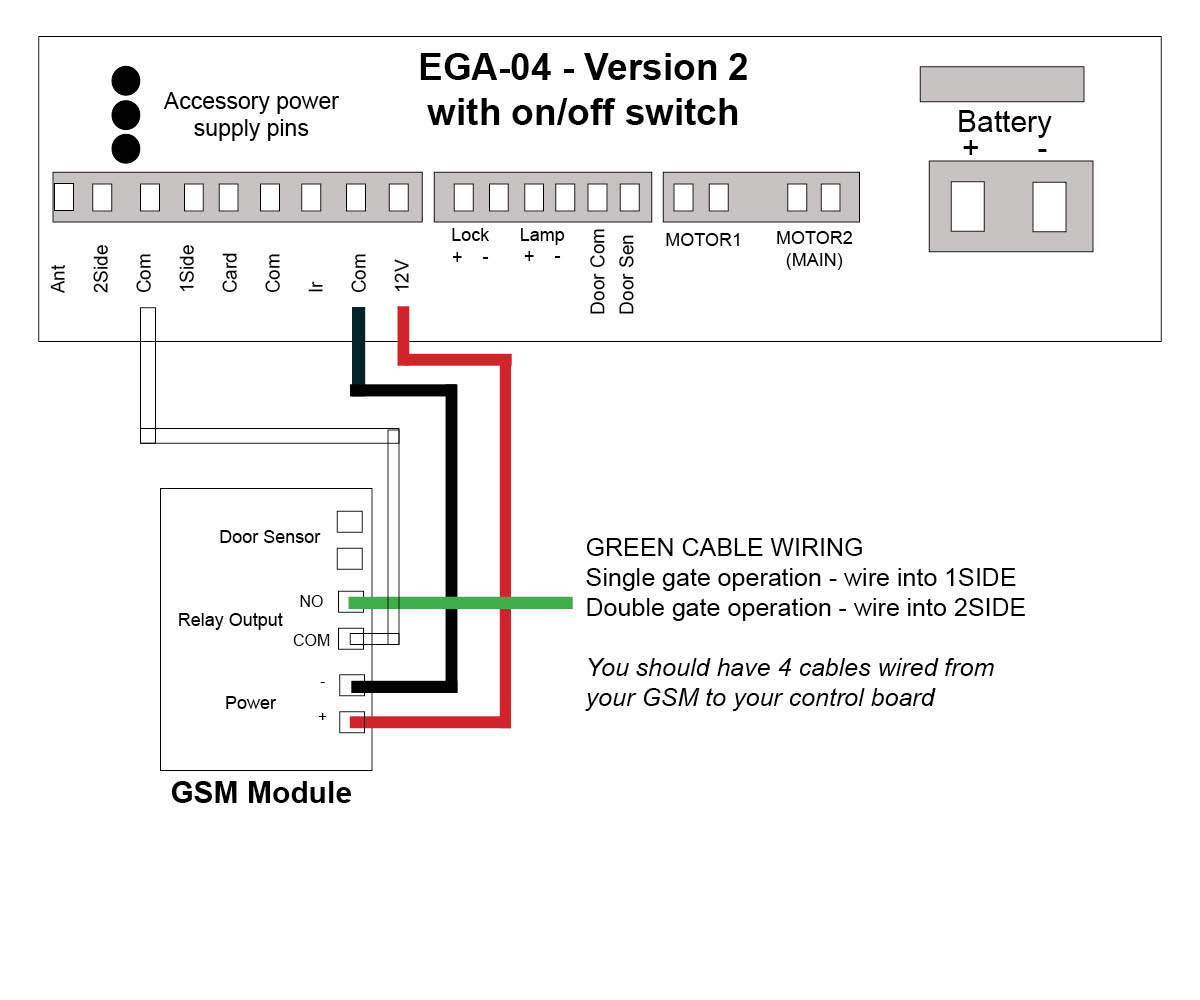

GSM Gate Opener

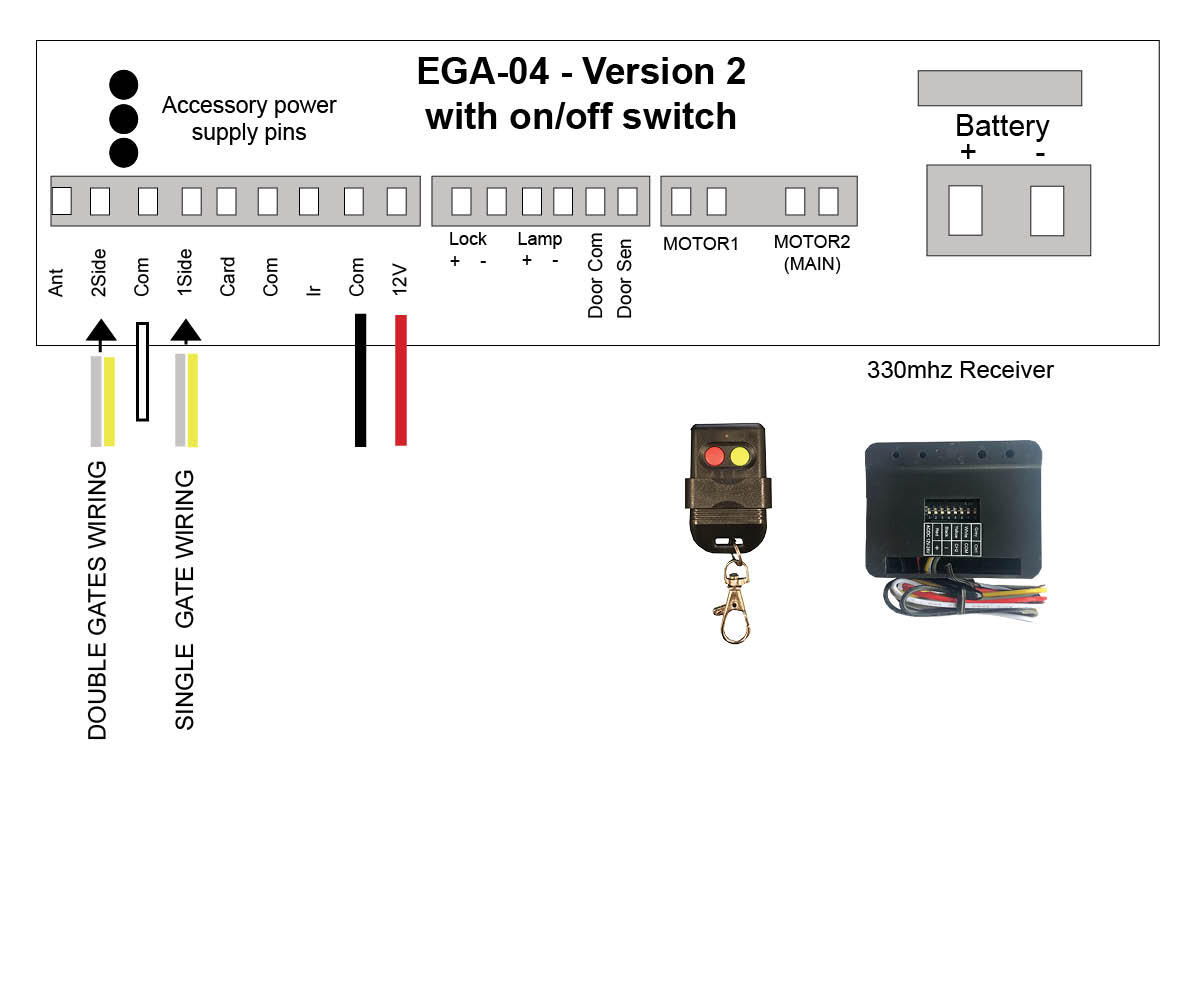

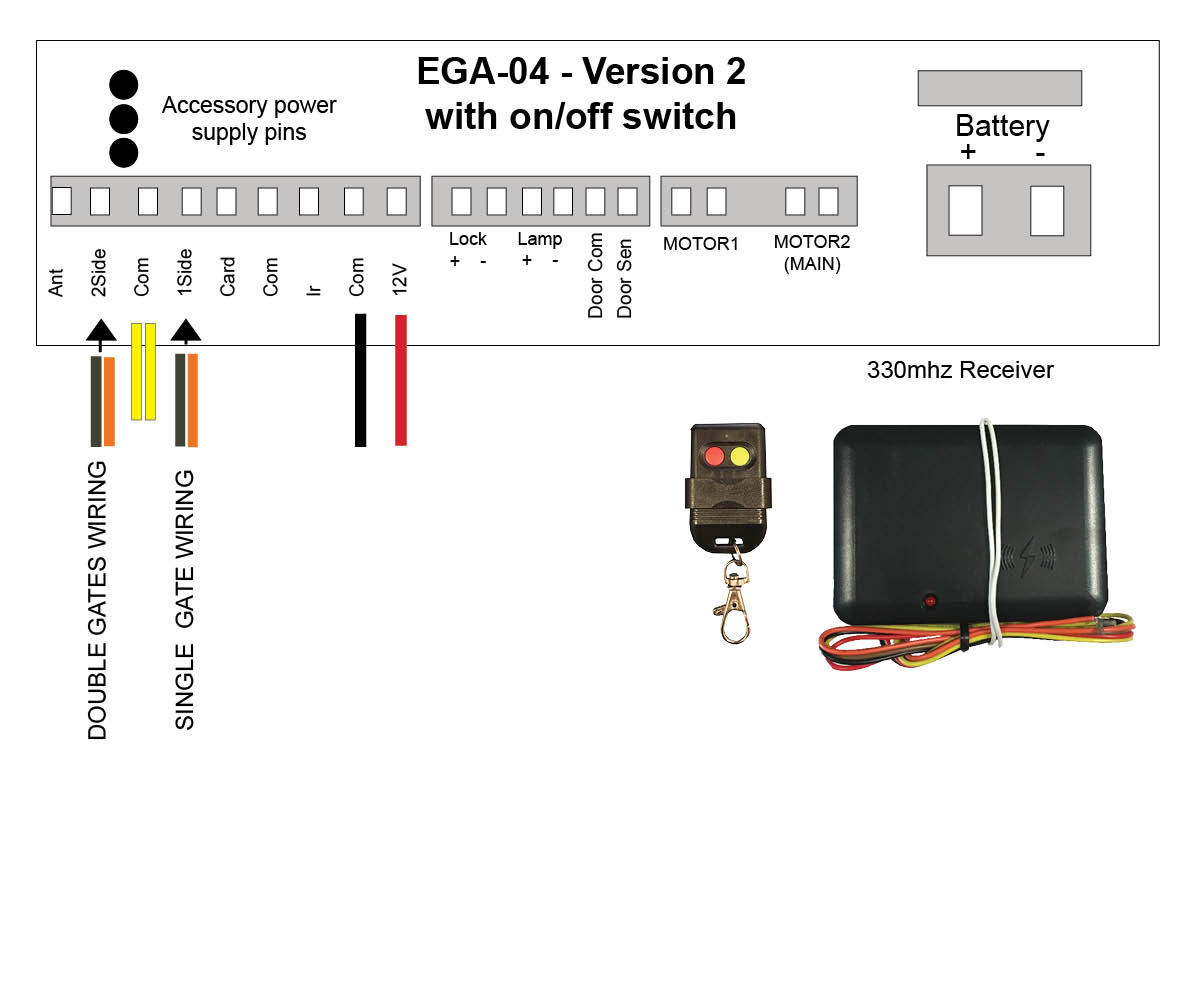

Wiring Receiver (Black remote with red and green button - version 1)
Wiring Receiver (Black remote with red and green button - version 2)

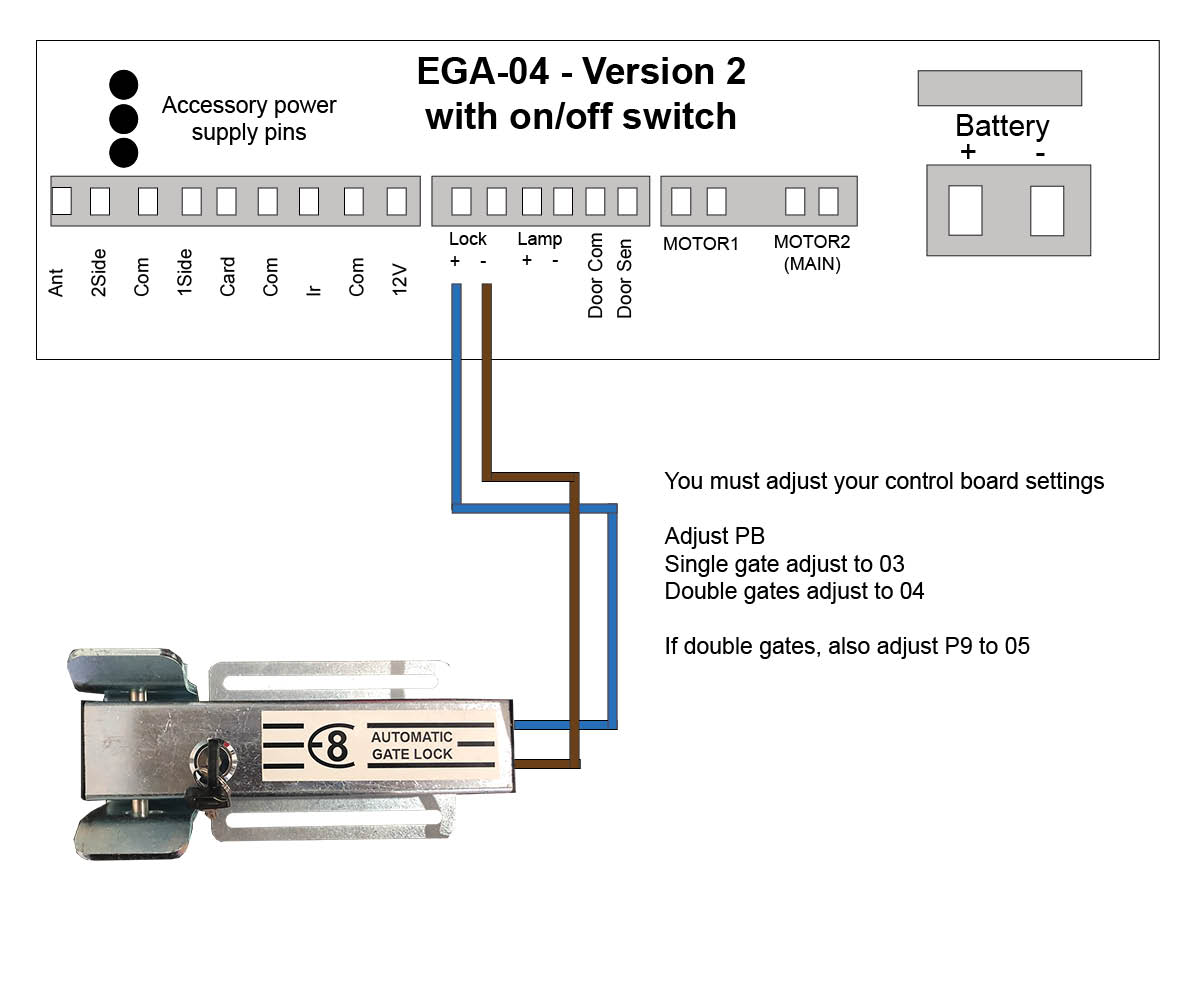

Electric Gate Lock
Orange Warning Light
Eye Beams - wired
Eye Beams - wireless
Step 5 - Power Wiring (Solar or Electric)

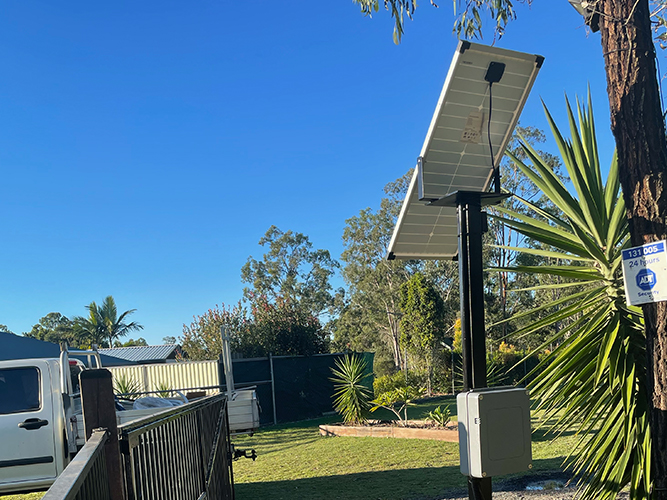

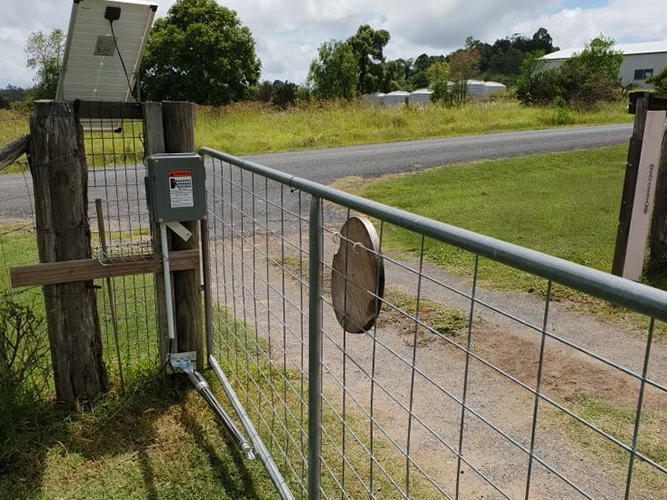

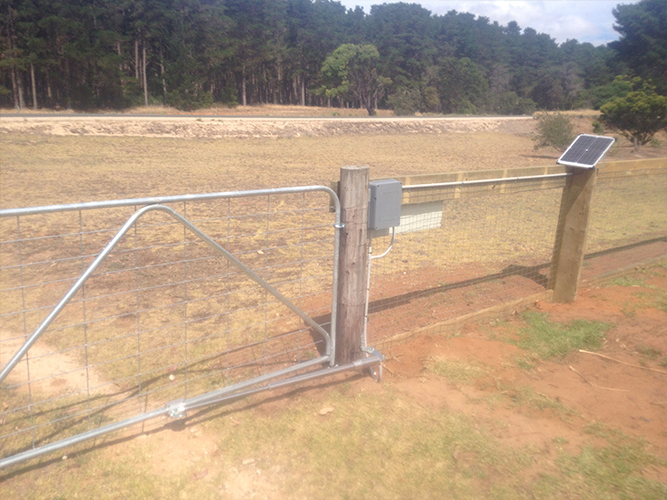

Solar Power

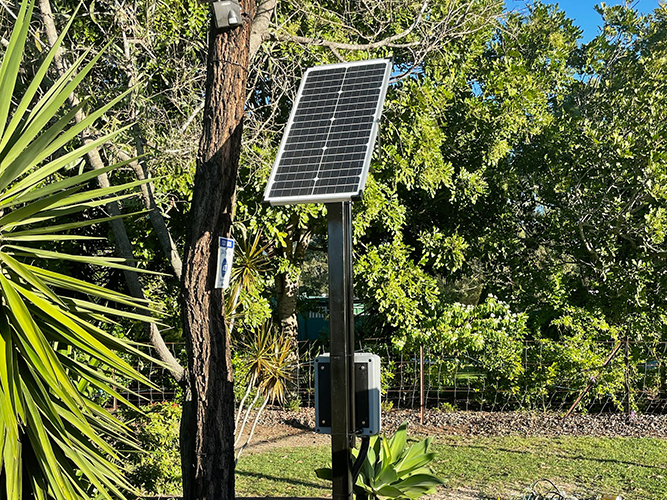

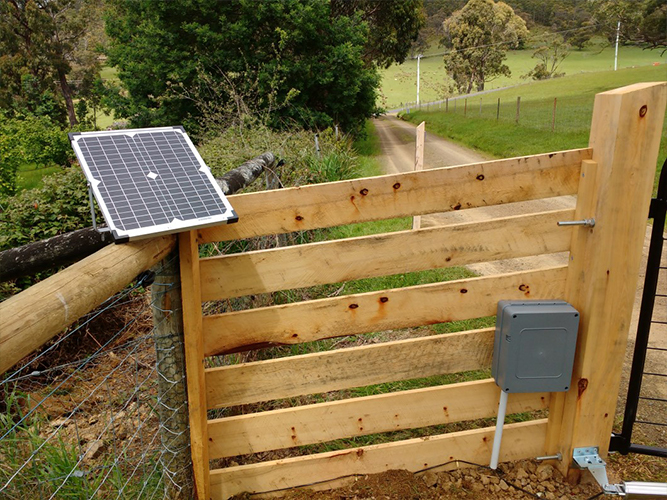

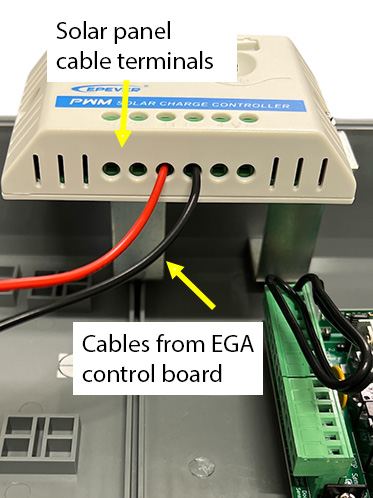

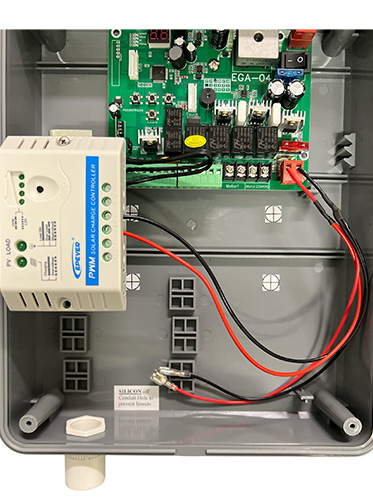

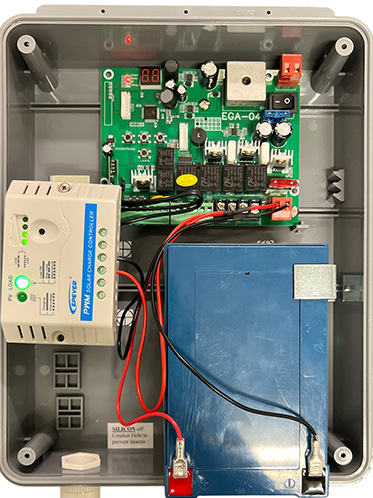

Images below showing the solar panel wired to the solar regulator with the battery connected.
Electric Power

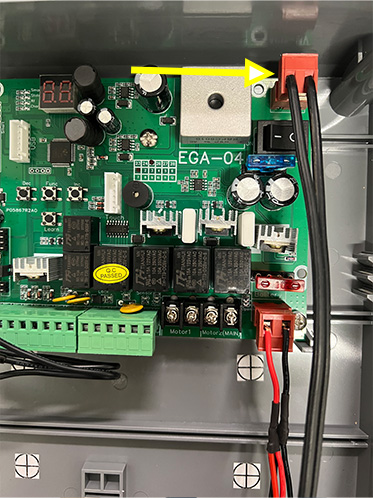

Images below showing the transformer wired to the EGA control board - if you have a backup battery connect it via the battery cables from the EGA board.
Setting your Auto Travel Function with the EGA Control Board Version 2
Make sure the power switch is turned on before applying power.
If you have double gates PO should be set to 00, if you have a single gate PO should be set to 01.
The DACE Ultima HT series is the new generation of the old Condo gate motor. The Ultima HT is designed for residential & light commercial applications and suits gates up to 15mtrs long.
With state of the art technology and a strong, rugged construction it will stand up to the most extreme conditions.
The DACE Ultima HT features pedestrian mode, auto close and many other exciting features.
This kit is available as a 12v setup in Solar or DC battery operated which is perfect through those times of power outages.
The solar kit is the perfect solution if you don't have 240v power around your gate way area but still want the luxury and security of having an automatic gate opener on your front gate.
Now if its electric you're looking for, then there is no need for mains (240V) power at the gate site as the electric kit includes a transformer and can be placed up to 50mtrs away from the driveway gate (dependant on cable size). This power supply plugs into your 240v outlet which you then run low voltage cable from and directly into the gate opener control box.
Running low Voltage wire is safe and can be even stapled along the fence line or run through conduit 100mm under the ground. Unlike 600mm under ground for 240V supply to your front gate.
Check out this video below to see if the
Ultima motor is the right product for you
NO MORE EFFORT
HIGH TRAFFIC
Ultima HT18/36 is the workhorse you need when people come and go often.
GREATER CONVENIENCE
ALL IN THE PRESS OF A BUTTON!
IS IT RAINING?
No need for you to get wet,
you can open the gate from inside your car.
KIDS IN THE CAR?
No longer keep them waiting
while you open or close the gate.
MORE STYLE
A SECURE HOME
Your property is less desirable to thieves with an automated gate.
Steel Internal Gear
To suit BMGi's standards, we have engineered the Ultima's internal gear with a steel internal design to go with our steel internal drive gear. This ensures the slide motor has a higher life expectancy and allows our units to be more shock tolerant when an unexpected obstruction is sensed.
YES - digital setting for Open and Close force, adjustable from 0% - 100%
On Board Receiver
1024
Receiver
16 Channel
Adjustable Ramp up
YES - adjustable per centimeter
Adjustable Ramp down
YES - adjustable per centimeter
Speed Ajustment
YES - 1mtr/min from 25mtrs/min down to 12mtrs/min
YES - 1mtr/min from 50mtrs/min down to 12mtrs/min
YES - 1mtr/min from 18mtrs/min down to 12mtrs/min
YES - 1mtr/min from 36mtrs/min down to 12mtrs/min
Sleep Modes
Light, Medium, Deep Sleep
Menu Navigation
Icons with quick navigation and voice prompts
Auto Close times
0 - 30 minutes
Upgradable Software
YES - Software upgradable by USB
On Board Charger
1.5A Intelligent multistage charging with auto 12V/24V charge selection
Self Diagnostics Screen
YES
Maximum number of openings for a 4m gate per day
Mains On
Mains Fail
Mains On
Mains Fail
Mains On
Mains Fail
Mains On
Mains Fail
Pull Force 15kgf
45
45 **
N/A
N/A
45
45 **
N/A
N/A
Pull Force 12kgf
65
65 **
65
35 **
65
65 **
65
35 **
Pull Force 7kgf
95
95 **
95
45 **
95
95 **
95
45 **
Pull Force 5kgf
130
130 **
130
65 **
150
150 **
150
75 **
** Within 24hrs
GATE WEIGHT - RUNNING FORCE - PULL FORCE
How to check that your gate is suitable for the Ultima RT or HT slide gate motor
RT25 Regular Traffic
HT18 High Traffic
Gate Specifications
Maximum Gate Mass
500kg
600kg
Maximum Pull Force
22kgf / 22N
28kgf / 280N
Maximum Running Force
15kgf / 150N
18kgf / 180N
Checking Pull Force Running Force
The driveway gate pull and running forces should be measured before purchasing or installing any gate opener. Should the measured forces exceed those in the table above for the Ultima units, then the motor must not be installed. It may be possible to reduce these forces by carrying out maintenance on the gate rail but if not, then the motor must not be installed.
These forces can be measured using a fishing or luggage scale (see figure above).
Pull Force: place the gate in the fully open/closed position and pull on the scale until the gate starts moving. The value showing on the scale at the point that the gate starts moving is the Pull Force kgf. This should be checked in both directions.
Running Force: this is the maximum value read while the gate is moving before coming to the fully open position.
Checking the Effective Gate weight if on a Gradient
Gradient = A (0.3m) / B (4m)
Effective Gate Weight When is a 200kg gate really 800kgs - Working out the effective gate weight
Effective Gate Weight = 40 x gradient + 1 x actual gate weight Eg. A driveway, that falls 300mm over 4m (.300/4 = .075 gradient) has an effective weight of 800kgs Effective Gate Weight = 40 x .075 + 1 x 200 Therefore, the example above wouldn't suit either of these motors
Other Examples:
80kg actual gate weight - Fall 100mm over 4m = 160kg effective gate weight
80kg actual gate weight - Fall 200mm over 5m = 208kg effective gate weight
150kg actual gate weight - Fall 350mm over 6m = 266kg effective gate weight
DIMENSIONS
Videos of the DACE Ultima in Action
The video below demonstrates full open and close as well as pedestrian access
The video below demonstrates the Ultima RT25 Solar kit
45watt Solar panel with mounting bracket & 10mtrs cable
Motor
Racking
Warranty
12v 14ah battery

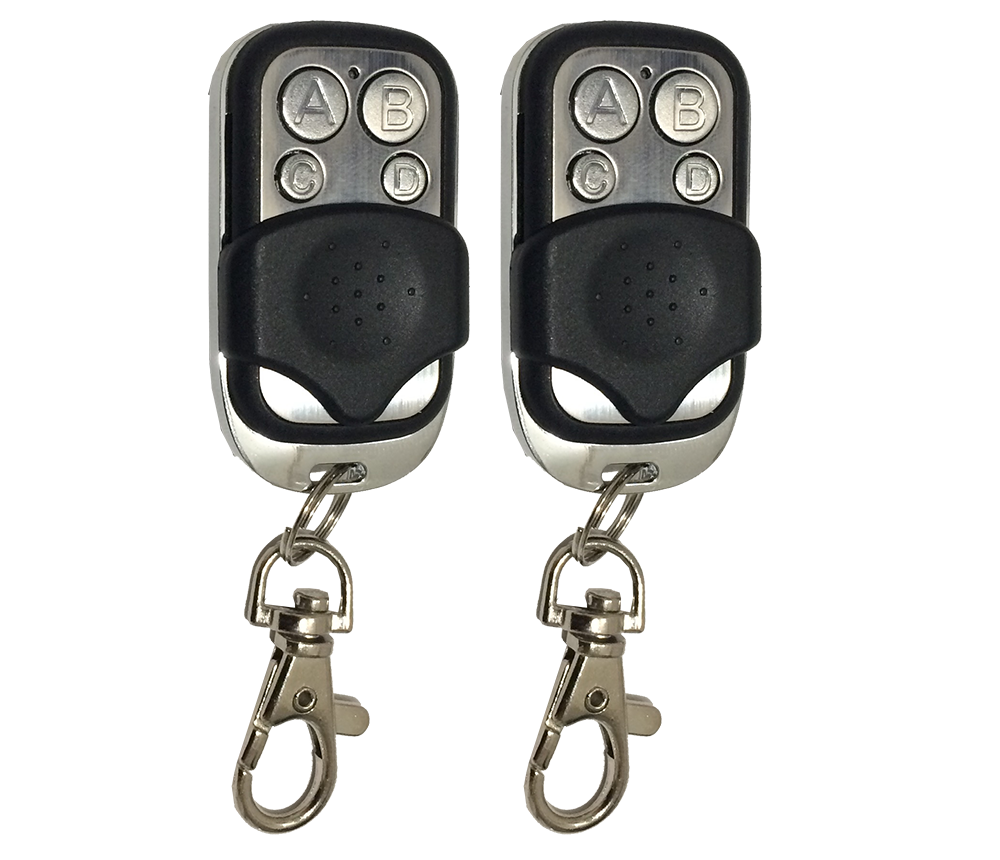

Remotes
Solar panel
Compare BMGi's DACE motors to our Competitors below
Important Features when comparing our Solar Kit - Click here
Important Features
BMGi Motor
Competitor Motor
Steel internal drive gears on both HT and RT models
✅
❌
Steel drive cog
✅
✅
Software updates completed before despatch
✅
❌
Standalone PWM solar charger for improved charging
✅
❌
High capacity 12v 14ah battery
✅
❌
12v 45w Mono-crystalline solar panel
✅
❌
Solar panel mounting bracket +
10mtrs pre-wired solar panel cable
✅
❌
2 x Bonus remotes
✅
❌
Adjustable Magnet Marker Bracket
✅
❌
Online help videos
✅
❌
Important Features when comparing our Electric Kit - Click here
Important Features
BMGi Motor
Competitor Motor
Steel internal drive gears on both HT and RT models
✅
❌
Steel drive cog
✅
✅
Software updates completed before despatch
✅
❌
IP67 outdoor transformer
✅
❌
12v 7ah battery
✅
✅
2 x Bonus remotes
✅
❌
Adjustable Magnet Marker Bracket
✅
❌
Online help videos
✅
❌
DACE Ultima RT25 - Automatic Sliding Gate
The DACE Ultima RT series is the new generation of the Sprint gate motor. The Ultima RT automatic gate motor is designed for residential applications and suits gates up to 15mtrs long.
With state of the art technology and a strong, rugged construction, this sliding gate motor will stand up to the most extreme conditions.
The DACE Ultima RT features pedestrian mode, auto close and many other exciting features.
This sliding gate kit is available as a 12v setup in Solar or DC battery operated which is perfect through those times of power outages.
The solar kit is the perfect solution if you don't have 240v power around your gate way area but still want the luxury and security of having an automatic gate opener on your front gate.
Now if its electric you're looking for, then there is no need for mains (240V) power at the gate site as the electric kit includes a transformer and can be placed up to 50mtrs away from the driveway gate (dependant on cable size). This power supply plugs into your 240v outlet which you then run low voltage cable from and directly into the gate opener control box.
Running low Voltage wire is safe and can be even stapled along the fence line or run through conduit 100mm under the ground. Unlike 600mm under ground for 240V supply to your front gate.
Check out the video below to see if the Ultima automatic gate motor is the right product for you
Steel Internal Gear
To suit BMGi's standards, we have engineered the Ultima's internal gear with a steel internal design to go with our steel internal drive gear. This ensures the motor has a higher life expectancy and allows our units to be more shock tolerant when an unexpected obstruction is sensed.
High Speed Motor
The Ultima RT25 is one of the fastest low voltage automatic gate motors available at 25 metres per minute it will open a 4 metre gate in 10 seconds. The opening and closing speeds as well as the ramp up/ramp down are independently adjustable.
The Ultima is such a refined gate motor that it will allow you to control the speed of the gate. Have your gate open at max speed but close slower just in case a loved one is in the way.
YES - digital setting for Open and Close force, adjustable from 0% - 100%
On Board Receiver
1024
Receiver
16 Channel
Adjustable Ramp up
YES - adjustable per centimeter
Adjustable Ramp down
YES - adjustable per centimeter
Speed Ajustment
YES - 1mtr/min from 25mtrs/min down to 12mtrs/min
YES - 1mtr/min from 50mtrs/min down to 12mtrs/min
YES - 1mtr/min from 18mtrs/min down to 12mtrs/min
YES - 1mtr/min from 36mtrs/min down to 12mtrs/min
Sleep Modes
Light, Medium, Deep Sleep
Menu Navigation
Icons with quick navigation and voice prompts
Auto Close times
0 - 30 minutes
Upgradable Software
YES - Software upgradable by USB
On Board Charger
1.5A Intelligent multistage charging with auto 12V/24V charge selection
Self Diagnostics Screen
YES
Maximum number of openings for a 4m gate per day
Mains On
Mains Fail
Mains On
Mains Fail
Mains On
Mains Fail
Mains On
Mains Fail
Pull Force 15kgf
45
45 **
N/A
N/A
45
45 **
N/A
N/A
Pull Force 12kgf
65
65 **
65
35 **
65
65 **
65
35 **
Pull Force 7kgf
95
95 **
95
45 **
95
95 **
95
45 **
Pull Force 5kgf
130
130 **
130
65 **
150
150 **
150
75 **
** Within 24hrs
GATE WEIGHT - RUNNING FORCE - PULL FORCE
How to check that your gate is suitable for the Ultima RT or HT slide gate motor
RT25 Regular Traffic
HT18 High Traffic
Gate Specifications
Maximum Gate Mass
500kg
600kg
Maximum Pull Force
22kgf / 22N
28kgf / 280N
Maximum Running Force
15kgf / 150N
18kgf / 180N
Checking Pull Force & Running Force
The driveway gate pull and running forces should be measured before purchasing or installing any gate opener. Should the measured forces exceed those in the table above for the Ultima units, then the motor must not be installed. It may be possible to reduce these forces by carrying out maintenance on the gate rail but if not, then the motor must not be installed.
These forces can be measured using a fishing or luggage scale (see figure above).
Pull Force: place the gate in the fully open/closed position and pull on the scale until the gate starts moving. The value showing on the scale at the point that the gate starts moving is the Pull Force kgf. This should be checked in both directions.
Running Force: this is the maximum value read while the gate is moving before coming to the fully open position.
Checking the Effective Gate weight if on a Gradient
Gradient = A (0.3m) / B (4m)
Effective Gate Weight When is a 200kg gate really 800kgs - Working out the effective gate weight
Effective Gate Weight = 40 x gradient + 1 x actual gate weight Eg. A driveway, that falls 300mm over 4m (.300/4 = .075 gradient) has an effective weight of 800kgs Effective Gate Weight = 40 x .075 + 1 x 200 Therefore, the example above wouldn't suit either of these motors
Other Examples:
80kg actual gate weight - Fall 100mm over 4m = 160kg effective gate weight
80kg actual gate weight - Fall 200mm over 5m = 208kg effective gate weight
150kg actual gate weight - Fall 350mm over 6m = 266kg effective gate weight
